GST5009B-LF 1000 Base-T Gigabit Single Port Ethernet LAN Filter LP82466NL

China GST5009B-LF 1000 Base-T Gigabit Single Port Ethernet LAN Filter LP82466NL supplier

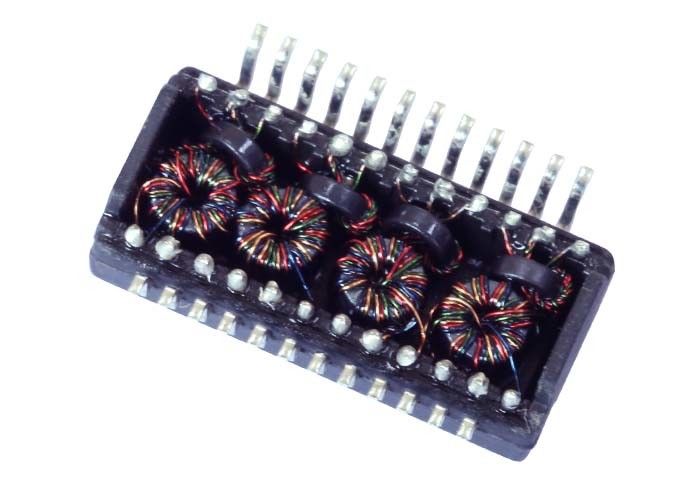

Large Image :  GST5009B-LF 1000 Base-T Gigabit Single Port Ethernet LAN Filter LP82466NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: GST5009B-LF

Payment & Shipping Terms:

Minimum Order Quantity: 500/1500
Price: Supportive
Packaging Details: tape & reel / tube
Delivery Time: Stock or 4-5weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4.7kk/month
Contact Now
Detailed Product Description
Item: GST5009B-LF Interface: 1000 Base-T
Pins: 24 Alternative: GST5009B-LF => LP82466NL
Measure: L15.10xB10.00xH4.01(mm) Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

GST5009B-LF 1000 Base-T Gigabit Single Port Ethernet LAN Filter LP82466NL



SPECIFICATION:



10/100/1000 Base -T Single Port Transformer Magnetic Modules,SMD,Rohs
LINK-PP Part Number: LP82466NL
Bothhand Part Number: GST5009B-LF
Speed: 10/100/1000BASE-T
Number of Ports: SINGLE
Application - LAN: ETHERNET (NON PoE)
Package: SMD
Temperature: 0 TO 70
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S
Construction: OPEN FRAME
Cores Per Port: 8
Number of Ports: SINGLE
Package Height (Inches): 0.148
Package Height (mm): 3.760
Package Length (Inches): 0.594
Package Length (mm): 15.10
Package Width (Inches): 0.394
Package Width (mm): 10.00
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT

GST5009B-LF 1000 Base-T Gigabit Single Port Ethernet LAN Filter LP82466NL


Application:



1 Frame Grabbers

2 Computer Terminals

3 Computer Motherboards

4 Workbenches and Workstations (Industrial)
