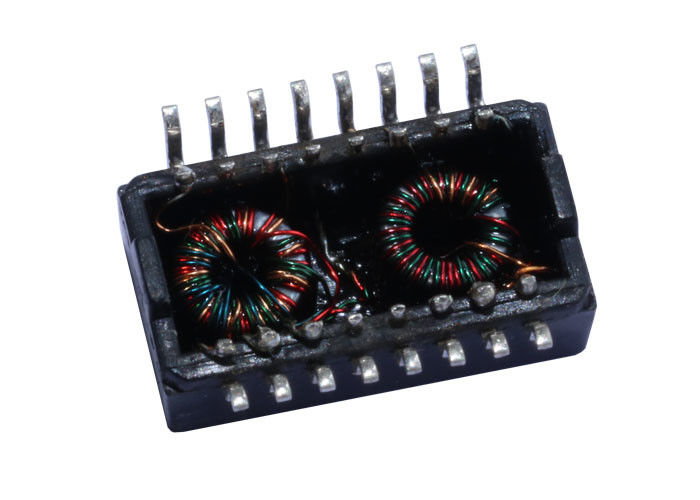

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: PE-65726NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
PE-65726NL |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Mounting Type: |
Surface Mount |
Samples: |
3-5 Pcs Free |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
PE-65726NL |
Transformer Type: |
Isolation And Data Interface |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Mounting Type: |
Surface Mount |
Samples: |
3-5 Pcs Free |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
|
Mfr Package Description
|
ROHS COMPLIANT
|
|
REACH Compliant
|
Yes
|
|
EU RoHS Compliant
|
Yes
|
|
Status
|
Active
|
|
Transformer Type
|
DATACOM TRANSFORMER
|
|
Application
|
10 BASE-T; LAN
|
|
Approvals
|
UL
|
|
Insertion Loss
|
1.0 dB
|
|
Isolation Voltage
|
1500.0 V
|
|
LINK-PP Equivalent
|
LP85726NL |
|
Manufacturer Series
|
PE-65726NL
|
|
Mounting Feature
|
SURFACE MOUNT
|
|
Number of Functions
|
1
|
|
Operating Temperature-Min
|
0.0 Cel
|
|
Operating Temperature-Max
|
70.0 Cel
|
|
Packing Method
|
TAPE & REEL
|
|
Physical Dimension
|
L12.8XB9.45XH5.65 (mm)
|
|
Primary Inductance
|
350.0 µH
|
|
Sub Category
|
Other Transformers
|
|
Terminal Finish
|
Tin (Sn) - with Nickel (Ni) barrier
|
|
Turns Ratio (Np:Ns)
|
1:1; 1:1
|
|
Height
|
5.65 mm
|
|
Length
|
12.8 mm
|
|
Width
|
9.45mm
|
|
Additional Feature
|
HEIGHT DIMENSION INCLUDES TERMINAL ALSO
|
