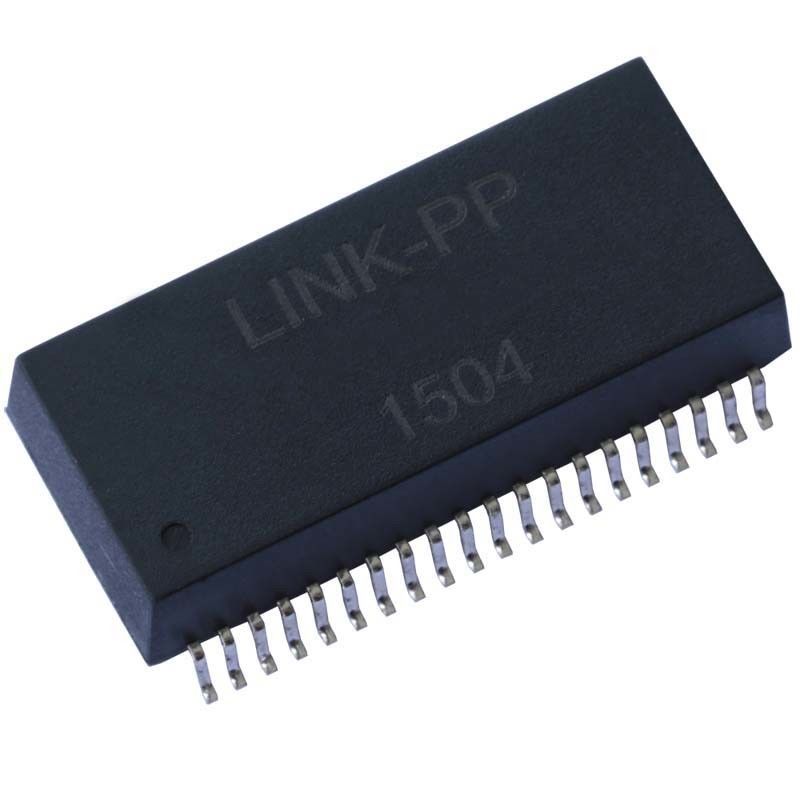

XFOO13Q23 40Pins Ethernet Magnetic Transformers T1/E1 4 Ports LPB81262ANLE

China XFOO13Q23 40Pins Ethernet Magnetic Transformers T1/E1 4 Ports LPB81262ANLE supplier

Large Image :  XFOO13Q23 40Pins Ethernet Magnetic Transformers T1/E1 4 Ports LPB81262ANLE

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: XFOO13Q23

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: XFOO13Q23 P/N: LPB81262ANLE
Ethernet: T1/E1 4 Ports Measure: 28.00x16.00x6.50mm
Samples: Free Files Available: PDF/3D/ISG/Stp/Step/Datasheet

XFOO13Q23 40Pins Ethernet Magnetic Transformers T1/E1 4 Ports LPB81262ANLE

XFOO13Q23 40Pins Ethernet Magnetic Transformers T1/E1 4 Ports LPB81262ANLE

Detailed Information:

LINK-PP Part Number LPB81262ANLE
XFMRC Part Number XFOO13Q23
Speed T1/E1
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature -40 TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.256
Package Height (mm) 6.50
Package Length (Inches) 1.102
Package Length (mm) 28.00
Package Width (Inches) 0.630
Package Width (mm) 16.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:2CT
