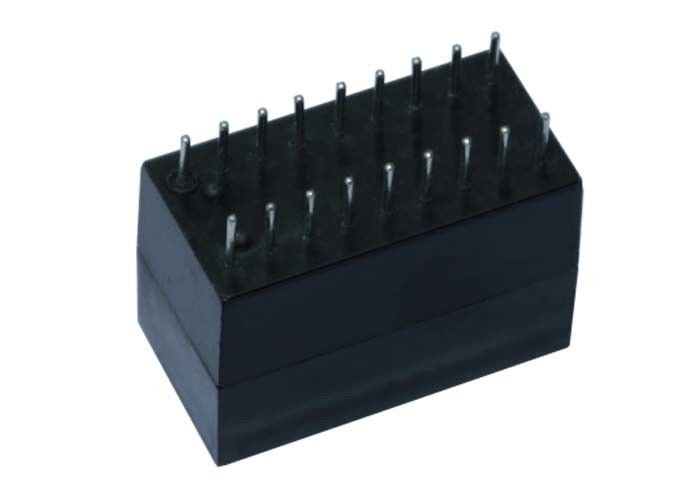

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LG1P109N LF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
LG1P109N LF |
Cross&Datasheet: |
LP81801NL |
Apllication: |
100/1000Base-T |
Turns Ratio: |
1 : 1 |
Cores: |
8 |
Temperature: |
0 TO 70℃ |
Part Number: |
LG1P109N LF |
Cross&Datasheet: |
LP81801NL |
Apllication: |
100/1000Base-T |
Turns Ratio: |
1 : 1 |
Cores: |
8 |
Temperature: |
0 TO 70℃ |
Competitor Cross Reference
| Pin to pin LG1P109N LF | |
| Factory PN | LP81801NL |
| Manufacturer Series | LG1P109N LF |
| Manufacturer | LINK-PP |
| Cross References | Equivalent to LG1P109N LF |
| Series | Transformer |
| L/T | Stock or 4-5 weeks |
| Description | XFMR 1000BASE-T SINGLE PORT 1:1 SMD |
| Documents Available | PDF/3D/ISG/Stp/Step/Datasheet |
| mode of payment | T/T, Western Union, MoneyGram |
| PIN | 18 |
| speed | 100/1000 Base-T |
| Mfr Package Description | ROHS COMPLIANT |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Transformer Type | DATACOM TRANSFORMER |
| Application | GENERAL PURPOSE |
| Isolation Voltage | 1500.0 V |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 1 |
| Primary Inductance | 350 |
| Terminal Finish | TIN |
| Samples | Available 5 pcs |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
Specification
|
|
