VP2006A Gigabit Ethernet Transformer Modules With 1000 Base-TX LP82422NL

China VP2006A Gigabit Ethernet Transformer Modules With 1000 Base-TX LP82422NL supplier

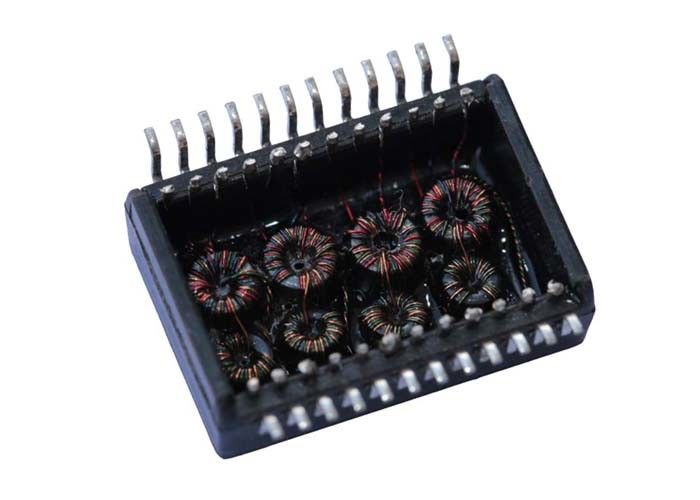

Large Image :  VP2006A Gigabit Ethernet Transformer Modules With 1000 Base-TX LP82422NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: VP2006A

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3-4 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: VP2006A Speed: 1000 BASE-T
Number Of Ports: SINGLE Package: SMD
PIN Number: 24 Temperature: 0℃ TO 70℃
Cores Per Port: 8 Mass PN: LP82422NL

VP2006A Gigabit Ethernet Transformer Modules With 1000 Base-TX LP82422NL



Detailed Information:

Single Port, 1000 BASE-T Ethernet Transformer Modules, SMT,Rohs
LINK-PP Part Number LP82422NL
UE Part Number VP2006A
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX C,T
Configuration TX C,T
Construction OPEN FRAME
Cores Per Port 8
Number of Ports SINGLE
Package Height (Inches) 0.244
Package Height (mm) 6.19
Package Length (Inches) 0.537
Package Length (mm) 13.64
Package Width (Inches) 0.471
Package Width (mm) 11.97
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

VP2006A Gigabit Ethernet Transformer Modules With 1000 Base-TX LP82422NL


VP2006A Gigabit Ethernet Transformer Modules With 1000 Base-TX LP82422NL
