24HSS1041A2 HF 1000 BASE - T Magnetic Ethernet Transformer LP5007NL

China 24HSS1041A2 HF 1000 BASE - T Magnetic Ethernet Transformer LP5007NL supplier

Large Image :  24HSS1041A2 HF 1000 BASE - T Magnetic Ethernet Transformer LP5007NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: 24HSS1041A2 HF

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive & Competitive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Part Number: 24HSS1041A2 HF Made In China: LP5007NL
China Manufacturer: LINK-PP Application: 10/100/1000Base-T
Dielectric: 1500Vrms Mounting: SMT

24HSS1041A2 HF 1000 BASE-T Magnetic Ethernet Transformer is available LP5007NL

24HSS1041A2 HF = LP5007NL  LINK-PP

Trader Part Number 24HSS1041A2 HF
Price Break Unit Price Extended Price
1-5 Free Free
10-50 2.5 >25
100-500 2.2 >220
1,000-2,500 1.15 >1150
5,000 1.00 >5000
10,000 Negotiable Negotiable
50,000  Negotiable Negotiable
100,000  Negotiable Negotiable
500,000  Negotiable Negotiable
Manufacturer

Stewart Connector

Manufacturer PN

24HSS1041A2 HF

Description

CONN MAGJACK 1PORT 1000 BASE-T

Lead Free Status / RoHS Status Lead free / RoHS Compliant
LINK-PP China Factory Cross LP5007NL Made In China
LPJG0820GENL Quantity Available

50,000 PCS
or 4 weeks ship immediately


Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


Electrical Specifications @ 25℃
unless otherwise noted:

1.Inductance: 350uH min, 100KHz, 100mV, 8mADC,
J1-J2;J3-J6;J4-J5;J7-J8, LP.
2.Return Loss(dB Min): 1-40MHz:-18
40-60MHz:-14
60-80MHz:-12
80-100MHz:-10
3.Crosstalk: 1-100MHz:-30dB Min
4.Insertion Loss: 1-100MHz:-1.0dB Max
5.CMR: 1-100MHz:-35dB Min
6.Turns Ratio: 1CT∶1CT
7.Isolation Voltage: 1500Vrms/60Hz
8.Operating Temperature Range: 0℃-70℃.

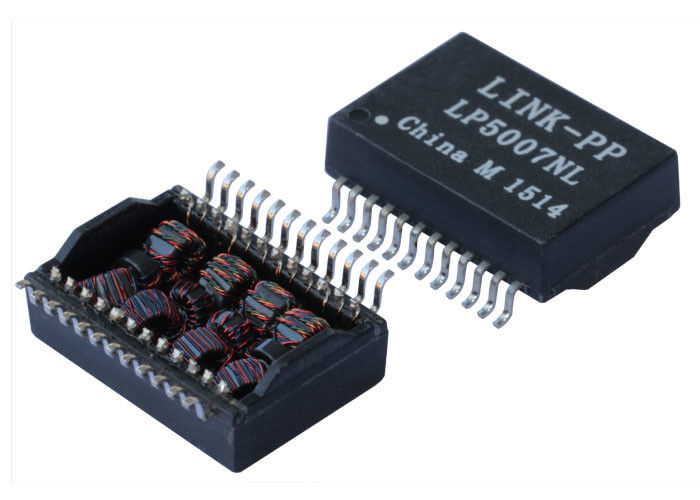

24HSS1041A2 HF 1000 BASE - T Magnetic Ethernet Transformer LP5007NL24HSS1041A2 HF 1000 BASE - T Magnetic Ethernet Transformer LP5007NL
