NS0013LF 10/100 BASE - T PC Card Ethernet Magnetic Transformer Modules LP0013NL

China NS0013LF 10/100 BASE - T PC Card Ethernet Magnetic Transformer Modules LP0013NL supplier
NS0013LF 10/100 BASE - T PC Card Ethernet Magnetic Transformer Modules LP0013NL supplier NS0013LF 10/100 BASE - T PC Card Ethernet Magnetic Transformer Modules LP0013NL supplier

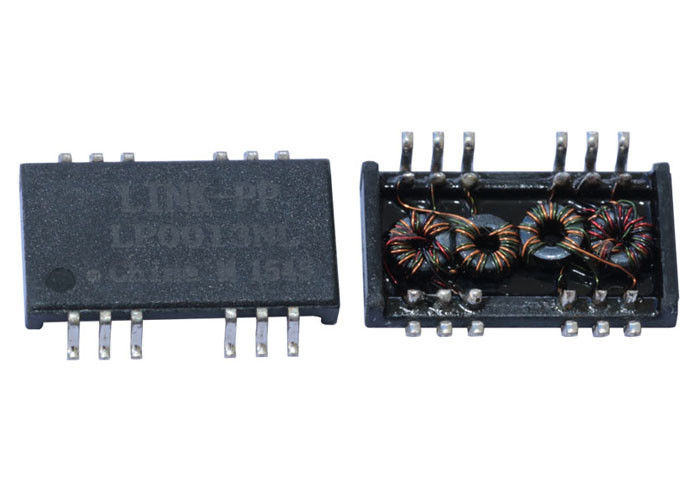

Large Image :  NS0013LF 10/100 BASE - T PC Card Ethernet Magnetic Transformer Modules LP0013NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: NS0013LF

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: NS0013LF Ethernet: 10/100Mbps
Mounting: SMD Ratio: 1CT:1CT
Samples: Free Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

NS0013LF 10/100 BASE-T PC Card Ethernet Magnetic Transformer Modules LP0013NL


Quick Details

  1. 10/100Mbps Transformer
  2. Single Port Transformer Modules
  3. SMT Transformer Low Profile 1.98mm Height Max
  4. Coils: 4
  5. 12.7x9.65x1.98mm
  6. NS0013LF Cross LP0013NL
Single Port, 10/100 BASE-T PC Card Ethernet Transformer Modules, SMD,Rohs
Part Number NS0013LF
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMT
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.078
Package Height (mm) 1.98
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.38
Package Width (mm) 9.65
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
LINK-PP Part Number LP0013NL



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Other parts Available

LP0013NL LINK-PP

LP0023NL LINK-PP

LP1011NLE LINK-PP

LP1011NL LINK-PP

LP1011PNL LINK-PP



NS0013LF 10/100 BASE - T PC Card Ethernet Magnetic Transformer Modules LP0013NL

NS0013LF 10/100 BASE-T PC Card Ethernet Magnetic Transformer Modules LP0013NL
