TG1GS031NY Gigabit Ethernet Lan transformer inductance For PC Card LP5015NL

China TG1GS031NY Gigabit Ethernet Lan transformer inductance For PC Card LP5015NL supplier
TG1GS031NY Gigabit Ethernet Lan transformer inductance For PC Card LP5015NL supplier TG1GS031NY Gigabit Ethernet Lan transformer inductance For PC Card LP5015NL supplier

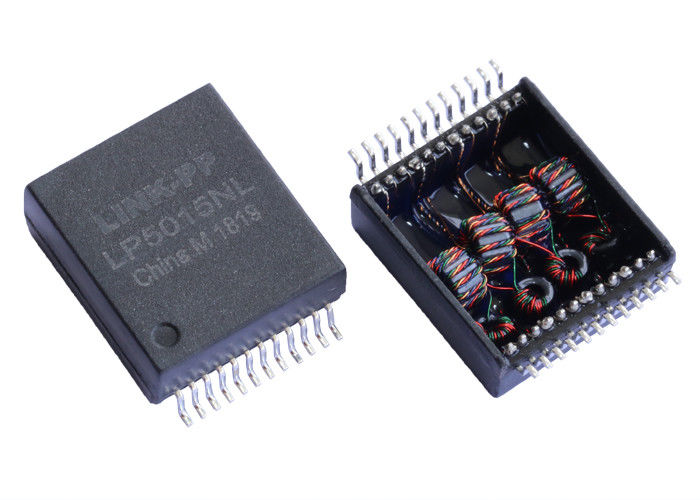

Large Image :  TG1GS031NY Gigabit Ethernet Lan transformer inductance For PC Card LP5015NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TG1GS031NY

Payment & Shipping Terms:

Minimum Order Quantity: 400/1800
Price: Supportive
Packaging Details: tape & reel / tube
Delivery Time: Stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5.1kk/month
Contact Now
Detailed Product Description
Item: TG1GS031NY Interface: 1000 Base-T
Operating Temperature: 0 To 70℃ Isolation Voltage: 1500Vrms
Application: Wireless Products/ EPON/ GPON Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

TG1GS031NY Gigabit Ethernet Lan transformer inductance For PC Card LP5015NL



  1. Designed for Ethernet 1000 Base-T Magnetics Modules Ethernet application
  2. Compliance with RoHS&Halogen Free requirements
  3. Gigabit Ethernet Lan transformer TG1GS031NY
  4. Pin to pin compatible by LINK-PP LP5015NL



1000 BASE-T Single Port PC Card Lan Modules, SMD,Rohs
LINK-PP Part Number LP5015NL
Halo Part Number TG1GS031NY
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Number of Ports SINGLE
Package Height (Inches) 0.224
Package Height (mm) 5.70
Package Length (Inches) 0.541
Package Length (mm) 13.75
Package Width (Inches) 0.732
Package Width (mm) 18.60
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
