Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499110120
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
7499110120 |
Mass Production: |
LPJD0720BENL |
Original Munafactuer: |
LINK-PP |
Application: |
10 Base-T |
Termination: |
Solder |
LEDs: |
Optional |
Mount Style: |
DIP / Top Entry |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
7499110120 |
Mass Production: |
LPJD0720BENL |
Original Munafactuer: |
LINK-PP |
Application: |
10 Base-T |
Termination: |
Solder |
LEDs: |
Optional |
Mount Style: |
DIP / Top Entry |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

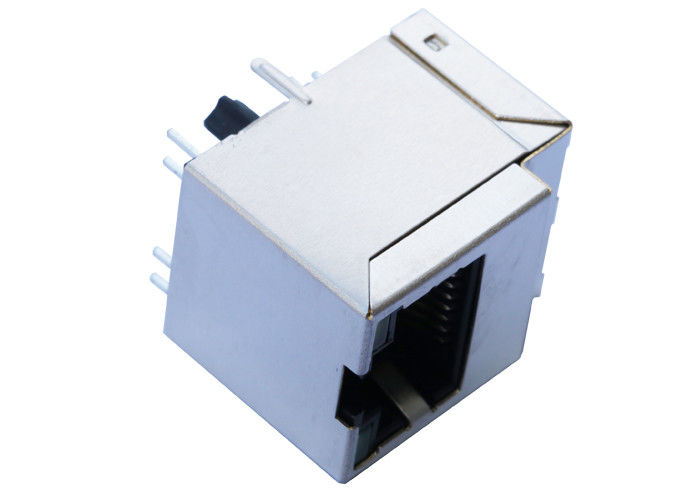

| Vertical Ethernet RJ45 Connector with 1000 Base-T Integrated Magnetics ,Green/Yellow LED,RoHS | |
| LINK-PP Part Number | LPJD0720BENL |
| Part Number | 7499110120 |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 16.51 |
| Package Length (mm) | 21.56 |
| Package Width (mm) | 15.95 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
