51F-1202ND2NL Vertical Entry RJ45 Jack With 10/100 Magnetic LPJD0011DNL

China 51F-1202ND2NL  Vertical Entry RJ45 Jack With 10/100 Magnetic LPJD0011DNL supplier
51F-1202ND2NL  Vertical Entry RJ45 Jack With 10/100 Magnetic LPJD0011DNL supplier 51F-1202ND2NL  Vertical Entry RJ45 Jack With 10/100 Magnetic LPJD0011DNL supplier

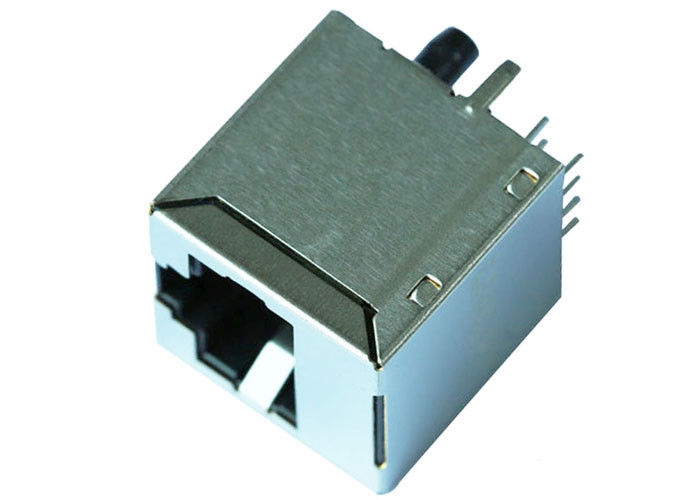

Large Image :  51F-1202ND2NL Vertical Entry RJ45 Jack With 10/100 Magnetic LPJD0011DNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 51F-1202ND2NL

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $0.79↑
Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 51F-1202ND2NL Mass Production: LPJD0011DNL
Application: 10/100 Base-T Termination: Solder
LEDs: Optional File: PDF/3D/ISG/Stp/Step/Datasheet

51F-1202ND2NL Vertical Entry RJ45 Jack With 10/100 Magnetic LPJD0011DNL

Quick Details

  • RJ45 1X1 Vertical
  • Through Hole
  • 10/100 Base-T
  • Designing Model : 51F-1202ND2NL
  • Mass Production Model : LPJD0011DNL

Description


Vertical RJ45 Jack Connector with 10/100 Base-T Integrated Magnetics ,Without LED,RoHS



LINK-PP Part Number LPJD0011DNL 51F-1202ND2NL  Vertical Entry RJ45 Jack With 10/100 Magnetic LPJD0011DNL
Designing Model 51F-1202ND2NL
Cores per Port 4
LED Option Without
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 16.90
Package Length (mm) 16.95
Package Width (mm) 16.00
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
