HFJV1-E2450-L78RL Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011B136NL

China HFJV1-E2450-L78RL Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011B136NL supplier
HFJV1-E2450-L78RL Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011B136NL supplier HFJV1-E2450-L78RL Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011B136NL supplier

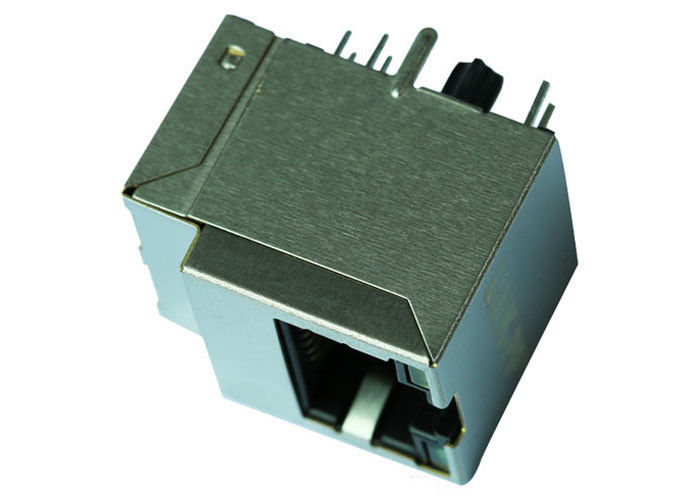

Large Image :  HFJV1-E2450-L78RL Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011B136NL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008,reach
Model Number: HFJV1-E2450-L78RL

Payment & Shipping Terms:

Minimum Order Quantity: 2000 / 10K, 50K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4000K/month
Contact Now
Detailed Product Description
Spec: HFJV1-E2450-L78RL LINK-PP Part Number: LPJD5011B136NL
LEDs: Orange,Green / Orange,Green Shielded: Yes
Samples: Free Family: Vertical Rj45 Mod-Jack
Speed: 10/100 Magnetic File: PDF/3D/ISG/Stp/Step/Datasheet

HFJV1-E2450-L78RL Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011B136NL

1. LPJD5011B136NL Vertical Rj45 Jack
2. 1X1 Vertical Type HFJV1-E2450-L78RL
3. Through hole RJ45 modular jack
4. HFJV1-E2450-L78RL PIN TO PIN LPJD5011B136NL


Description:


LINK-PP Part Number
LPJD5011B136NL
Application-LAN ETHERNET(NON POE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 4
Diodes NO DIODES
LED Option ORANGE,GREEN / ORANGE,GREEN
Latch UP
Number of Ports SINGLE PORT With VERTICAL
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 With LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With OR WithOUT
Speed 10/100 BASE-T
Temperature -40 TO 85°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1
