PH1128-V2311-A Vertical Rj45 RJ45 Magnetics Jack 10/100Mbps LPJD0012BDNL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

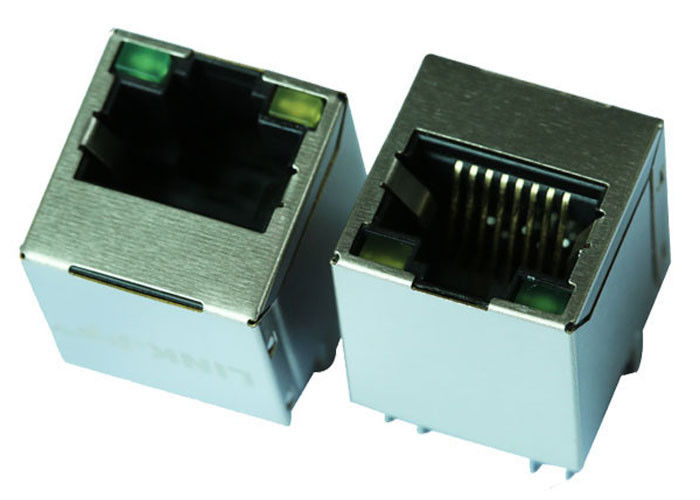

PH1128-V2311-A Vertical Rj45 RJ45 Magnetics Jack 10/100Mbps LPJD0012BDNL

China PH1128-V2311-A Vertical Rj45 RJ45 Magnetics Jack 10/100Mbps LPJD0012BDNL supplier
PH1128-V2311-A Vertical Rj45 RJ45 Magnetics Jack 10/100Mbps LPJD0012BDNL supplier PH1128-V2311-A Vertical Rj45 RJ45 Magnetics Jack 10/100Mbps LPJD0012BDNL supplier

Large Image :  PH1128-V2311-A Vertical Rj45 RJ45 Magnetics Jack 10/100Mbps LPJD0012BDNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: PH1128-V2311-A

Payment & Shipping Terms:

Minimum Order Quantity: 1320
Price: Supportive&Discount
Packaging Details: 60pcs /Tray,22 trays/carton,Size37*30*30 cm, 10KGS (1320 pcs) /Carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: PH1128-V2311-A Part No: LPJD0012BDNL
Ethernet: 1x 10/100 Mbps Mounting: Thru-Hole 180Degree
Samples: Available File: PDF/3D/ISG/Stp/Step/Datasheet

PH1128-V2311-A Vertical Rj45 RJ45 Magnetics Jack 10/100Mbps LPJD0012BDNL



  • LPJD0012BDNL LINK-PP RJ45 With Integrated Magnetics
  • 1CT:1CT  10/100Mbps, Straight 180 Degree
  • Isolation @ 60Hz: Input to output:1500Vrms.
  • Rj45 Shield With LED
  • Top Entry Rj45 Jack



Vertical RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,RoHS
LINK-PP Part Number LPJD0012BDNL
Part Number PH1128-V2311-A
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW / GREEN
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 16.90
Package Length (mm) 16.00
Package Width (mm) 16.70
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
