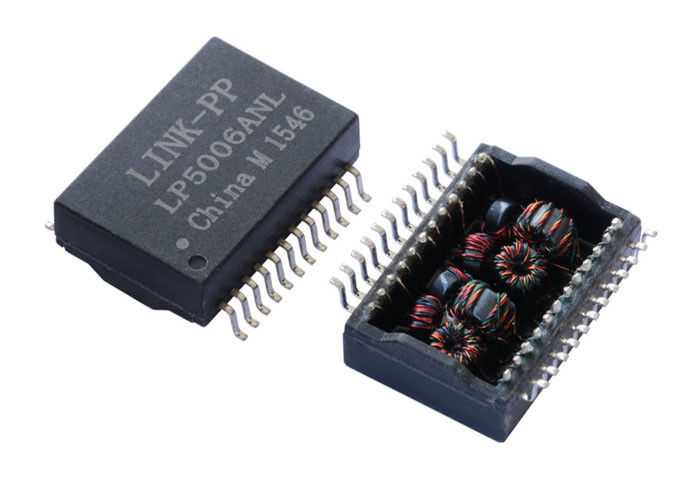

L22T001-B 1000base - T Magnetics Module Single Port SMD 24 Pins LP5006ANL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: L22T001-B

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

Item:
L22T001-B
Ethernet:
1000 Base-T
Cross Rf:
L22T001-B=>LP5006ANL
Pins:
24
Files:
PDF / Datasheet / 3D / IGS / Step /Stp
Samples:
Available 4 PCS
Port:
Single
Price:
Supportive
Item:
L22T001-B
Ethernet:
1000 Base-T
Cross Rf:
L22T001-B=>LP5006ANL
Pins:
24
Files:
PDF / Datasheet / 3D / IGS / Step /Stp
Samples:
Available 4 PCS
Port:
Single
Price:
Supportive
L22T001-B 1000base - T Magnetics Module Single Port SMD 24 Pins LP5006ANL
L22T001-B 1000base-t Magnetics Module Single Port SMD 24pins LP5006ANL



1.Single Port Gigabit Ethernet Transformer LP5006ANL

2.Cross rf L22T001-B Pin to Pin Compatible

3.1000 Base-T Magnetics Modules Ethernet application



Application:



1.Rugged computers

2.Cable Assemblies

3.Data Output Modules

4.PCI Products



Single Port, 10/100/1000 BASE-T PC Card Ethernet Lan Transformer Modules & PoE+, SMT,Rohs
LINK-PP Part Number LP5006ANL
Part Number L22T001-B
Speed 10/100/1000 BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (PoE+)
Package SMD
Temperature -40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX C,T
Configuration TX C,T
Construction OPEN FRAME
Cores Per Port 8
Number of Ports SINGLE
Package Height (mm) 6.00
Package Length (mm) 12.20
Package Width (mm) 18.15
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



NOTES:
1.Designed to support application
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias .
4.Maximum Reflow Temperature is 250℃,5 Sec.

5.Meets IEEE 802.3 specification
6.UL Certification: File Number E484635

7.Compliance with ROHS requirements

8.100% Tested (Not Just Batch Tested)
