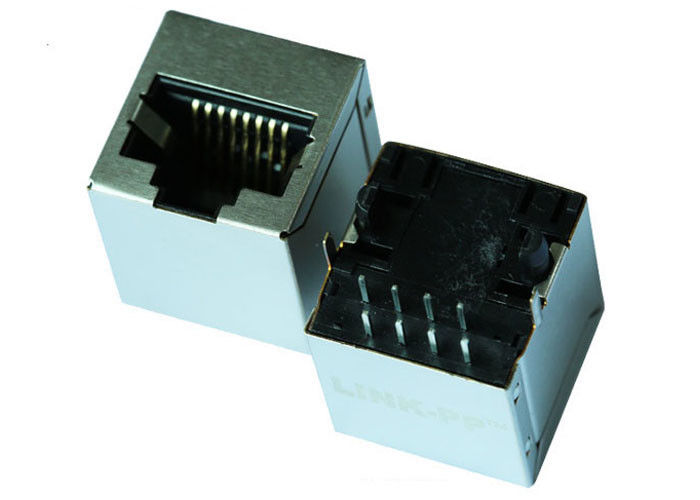

HY951140A Vertical RJ45 Jack For Network Camera Across LPJD0012DNL

HY951140A Vertical RJ45 Jack  For Network Camera Across LPJD0012DNL
HY951140A Vertical RJ45 Jack  For Network Camera Across LPJD0012DNL HY951140A Vertical RJ45 Jack  For Network Camera Across LPJD0012DNL

Large Image :  HY951140A Vertical RJ45 Jack For Network Camera Across LPJD0012DNL

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HY951140A
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Optional
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Detailed Product Description
Part Number: HY951140A PIN TO PIN: LPJD0012DNL
Speed: 10/100 BASE-T Temperature: 0 TO 70℃
Shield EMI Tabs: WITHOUT File: PDF/3D/ISG/Stp/Step/Datasheet
Highlight:

modular jacks rj45

,

multi port connector

HY951140A Vertical RJ45 Jack For Network Camera Across LPJD0012DNL

Quick Details

  • HY951140A
  • Vertical RJ45 Jack
  • Meets Embedded control system
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJD0012DNL

Specifications
Vertical RJ45 Connector with 10/100 Base-T Integrated Magnetics ,Without LED,RoHS
LINK-PP Part Number LPJD0012DNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.665
Package Height (mm) 16.90
Package Length (Inches) 0.657
Package Length (mm) 16.70
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.





                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti



HY951140A Vertical RJ45 Jack  For Network Camera Across LPJD0012DNL 0








Related PN


We Can Also Make These Part Number



HY951140A Vertical RJ45 Jack  For Network Camera Across LPJD0012DNL 1
