HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL

China HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL supplier
HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL supplier HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL supplier

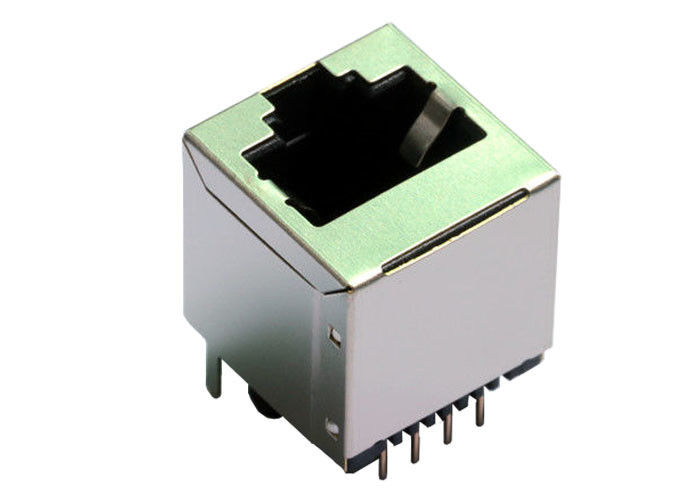

Large Image :  HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: HR951175A

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: Optional
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: HR951175A PIN TO PIN: LPJD0055DNL
Speed: 10 BASE-T Temperature: 0 TO 70℃
Shield EMI Tabs: WITHOUT File: PDF/3D/ISG/Stp/Step/Datasheet

HR951175A 10 Base-T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL



Specifications
Vertical RJ45 Connector with 10 Base-T Integrated Magnetics ,Without LED,RoHS
LINK-PP Part Number LPJD0055DNL
HanRun Part Number HR951175A
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 17.50
Package Length (mm) 17.50
Package Width (mm) 16.80
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.





                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti



HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL
