749022011 Magnetic Gigabit Ethernet Transformer LP6062ANL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 749022011

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

P / N:
749022011
Pin:
24
Compatible:
LP6062ANL
Application:
HUB, PC Card, Switch, Router Etc
Sample:
Available
Color:
Black
P / N:
749022011
Pin:
24
Compatible:
LP6062ANL
Application:
HUB, PC Card, Switch, Router Etc
Sample:
Available
Color:
Black
749022011 Magnetic Gigabit Ethernet Transformer LP6062ANL
749022011 Magnetic Gigabit Ethernet Transformer LP6062ANL



Quick Details :



1. Gigabit Transformer Modulers With Power Over Ethernet Option

2. Meets IEEE 802.3 Speciffcation

3. For RoHS Part add Suffix NL

4. RoHS " NL" Peak Solder Rating 260℃ ± 5℃ )



Description :


Pin to pin 749022011
Factory PNLP6062ANL
Manufacturer Series749022011
ManufacturerLINK-PP
Cross ReferencesEquivalent to 749022011
SeriesTransformer
L/TStock or 4-5 weeks
DescriptionXFMR 1000BASE-T SINGLE PORT 1:1 SMD
Documents AvailablePDF/3D/ISG/Stp/Step/Datasheet
mode of paymentT/T, Western Union, MoneyGram
PIN24
speed1000 Base-T
Mfr Package DescriptionROHS COMPLIANT
REACH CompliantYes
EU RoHS CompliantYes
China RoHS CompliantYes
StatusActive
Transformer TypeDATACOM TRANSFORMER
ApplicationGENERAL PURPOSE
Isolation Voltage1500.0 V
Mounting FeatureSURFACE MOUNT
Number of Functions1
Primary Inductance350
Terminal FinishTIN
SamplesAvailable 5 pcs
Turns Ratio (Np:Ns)1:1; 1:1

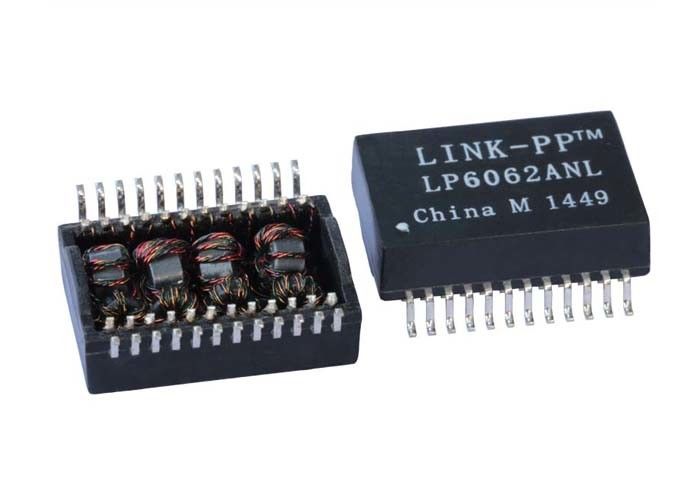

749022011 Magnetic Gigabit Ethernet Transformer LP6062ANL 0
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Professional Certification:
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy


FAQ

Q: What is the Minimum Order Quantity(MOQ)?
A: Normally, MOQ is 1000pcs, but special requirements can be accepted.

Q: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.

Q: What is the lead time?(How long do you need me to prepare my goods?)
A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)

Q: How will you deliver goods to me?
A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.

Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air transportation, 3-5 days for international express.

Q: How is your product quality?
A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. DOSIN always care what you care!

Q: What is your warranty?
A: Our warranty is 12 months after delivery, DOSIN pays high attention to after-sales service.
