Model Number: 30F-51NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$2.2 can be negotiable
Packaging Details: T&R
Delivery Time: 1-2 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Number Of Port: |
Single Port |
Package: |
SMD |
Pin No: |
24 Pins |
Series: |
Single Port GigE Transformer |
Samples: |
Free Offer |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Port: |
Single Port |
Package: |
SMD |
Pin No: |
24 Pins |
Series: |
Single Port GigE Transformer |
Samples: |
Free Offer |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
|

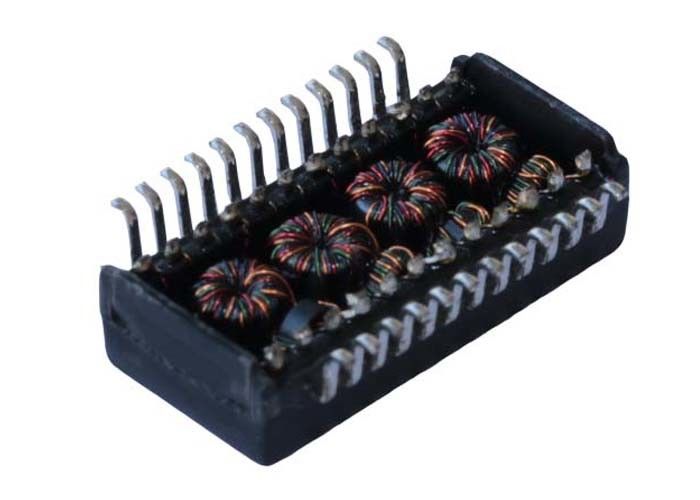

LINK-PP Part Number |
LP82440ANL |
|
Speed |
1000 BASE-T |
|
Number of Ports |
SINGLE |
|
Application |
Lan Ethernet |
|
Package |
SMD |
|
PIN |
24 |
|
Temperature |
-40 TO + 85 |
|
Package Height (mm) |
4.00 |
|
Package Length (mm) |
15.1 |
|
Package Width (mm) |
10.0 |
Notes:
1. Designed For Gigabit Transceivers
2. IEEE 802.3af / ANSI X3.263 Compliant Performance
3. 350mA Current Capability
4. Maximum Reflow Temperature is 250℃, 5Sec
5. Magnetics, Designed For Gigabit PHY Used in Backplane
6. For the RoHS Part Add the Suffix NL
6. UL Certification: File Number E484635
Electrical Specifications @25℃
1. Turns Ratio: 1CT:1CT ±5%
2. OCL: 350uH min @100KHz, 100mV, 8mADC Bias
3. Insertion Loss:
1-100MHz: -1.0dB MAX
4. Return Loss(dB MIN @100Ω):
1-30MHz: -18
40MHz: -14.4
50MHz: -13.1
60-80MHz: -12
100MHz: -10
5. Crosstalk (dB MIN):
30MHz: -45
60MHz: -40
100MHz: -35
6. DCMR: (dB MIN):
30MHz: -43
60MHz: -35
100MHz: -30
7. Hipot: 1500Vrms MIN
8. Operating Temperature : -40°C to +85°C
