Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP6017ANL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
P / N: |
LP6017ANL |
Pin: |
24 |
Application: |
HUB, PC Card, Switch, Router Etc |
Sample: |
Available |
Color: |
Black |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
P / N: |
LP6017ANL |
Pin: |
24 |
Application: |
HUB, PC Card, Switch, Router Etc |
Sample: |
Available |
Color: |
Black |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Quick Details :
1. 5G Base-T Transformer Modulers
2. Meets IEEE 802.3 Speciffcation
3. For RoHS Part add Suffix NL
4. RoHS " NL" Peak Solder Rating 260℃ ± 5℃ )
Description :

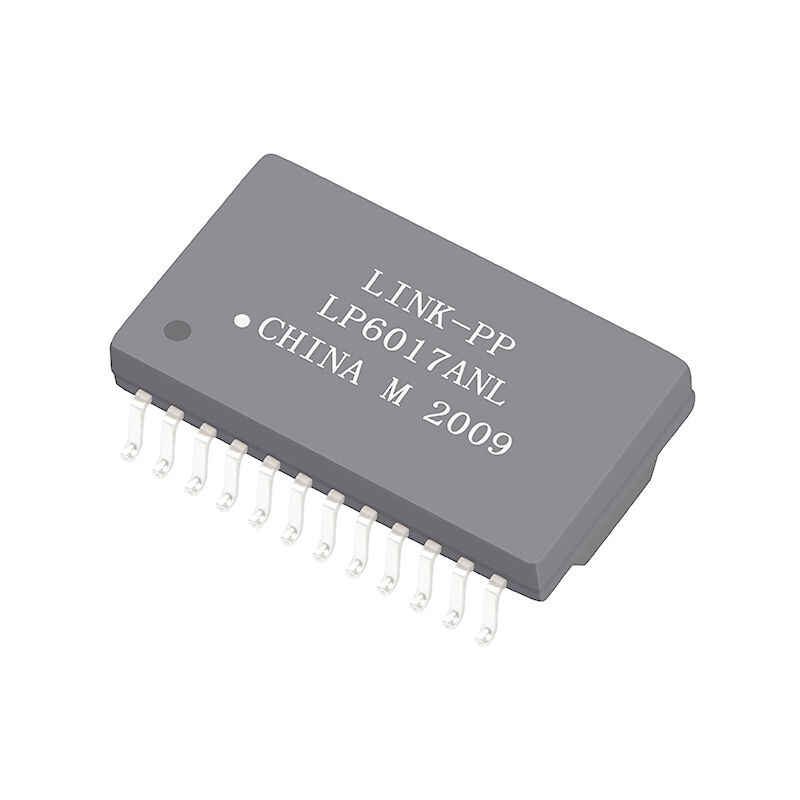

| Single Port, 5G BASE-T Ethernet Lan Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number: | LP6017ANL |
| Speed: | 5G BASE-T |
| Number of Ports: | SINGLE |
| Application - LAN: | ETHERNET (NON PoE) |
| Package: | SMD |
| Temperature: | 0 TO 70℃ |
| AutomDX: | YES |
| Comment: | SAME AS NL VERSION |
| Configuration RX: | T,C,S |
| Configuration TX: | T,C,S |
| Construction: | OPEN FRAME |
| Cores Per Port: | 8 |
| Package Height (Inches): | 0.154 |
| Package Height (mm): | 3.9 |
| Package Length (Inches): | 0.669 |
| Package Length (mm): | 17 |
| Package Width (Inches): | 0.486 |
| Package Width (mm): | 12.35 |
| Turns Ratio RX: | 1CT:1CT |
| Turns Ratio TX: | 1CT:1CT |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Professional Certification:
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
FAQ
Q: What is the Minimum Order Quantity(MOQ)?
A: Normally, MOQ is 1000pcs, but special requirements can be accepted.
Q: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.
Q: What is the lead time?(How long do you need me to prepare my goods?
A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)
Q: How will you deliver goods to me?
A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
