2.5G Base-T MagneticLAN Transformer Modules SMD LP5016NL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5016NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

P / N:
LP5016NL
Pin:
24
Application:
HUB, PC Card, Switch, Router Etc
Sample:
Available
Color:
Black
File:
PDF/3D/ISG/Stp/Step/Datasheet
P / N:
LP5016NL
Pin:
24
Application:
HUB, PC Card, Switch, Router Etc
Sample:
Available
Color:
Black
File:
PDF/3D/ISG/Stp/Step/Datasheet

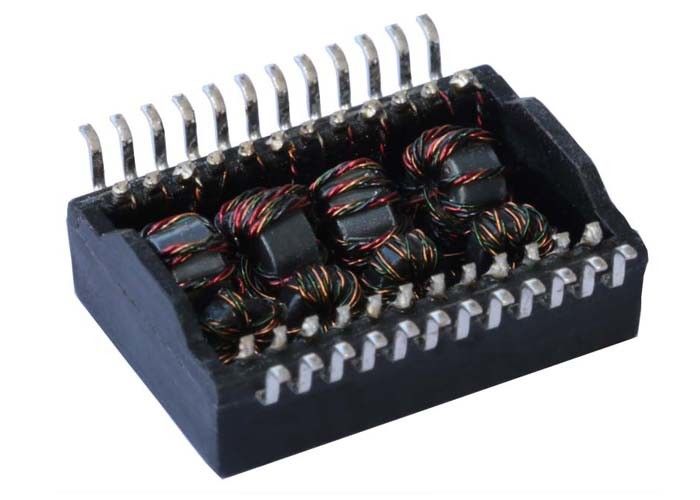

2.5G Base-T MagneticLAN Transformer Modules SMD LP5016NL
2.5G Base-T MagneticLAN Transformer Modules SMD LP5016NL



Quick Details :



1. 2.5G Base-T Transformer Modulers

2. Meets IEEE 802.3 Speciffcation

3. For RoHS Part add Suffix NL

4. RoHS " NL" Peak Solder Rating 260℃ ± 5℃ )



Description :

Single Port, 2.5G BASE-T Ethernet Lan Transformer Modules, SMD,Rohs
LINK-PP Part Number: LP5016NL
Speed: 2.5G BASE-T
Number of Ports: SINGLE
Application - LAN: ETHERNET (NON PoE)
Package: SMD
Temperature: 0 TO 70℃
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S
Construction: OPEN FRAME
Cores Per Port: 8
Package Height (Inches): 0.226
Package Height (mm): 5.75
Package Length (Inches): 0.689
Package Length (mm): 17.5
Package Width (Inches): 0.626
Package Width (mm): 15.9
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT

2.5G Base-T MagneticLAN Transformer Modules  SMD LP5016NL 0
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Professional Certification:
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy


FAQ

Q: What is the Minimum Order Quantity(MOQ)?
A: Normally, MOQ is 1000pcs, but special requirements can be accepted.

Q: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.

Q: What is the lead time?(How long do you need me to prepare my goods?

A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)

Q: How will you deliver goods to me?
A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
