Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: IH-037
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
P/N: |
IH-037 |
Manufacturer: |

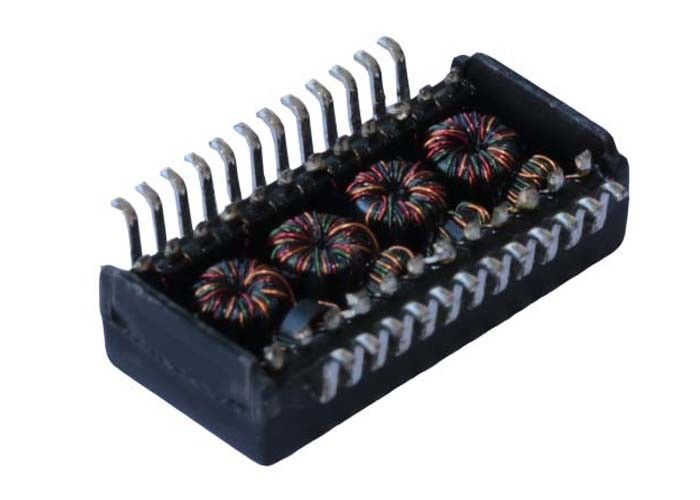

LINK-PP LP82440ANL |
Pin No: |
24 Pins |
Series: |
Single Port GigE Transformer |
Samples: |
Free Offer |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
P/N: |
IH-037 |
Manufacturer: |
LINK-PP LP82440ANL |
Pin No: |
24 Pins |
Series: |
Single Port GigE Transformer |
Samples: |
Free Offer |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
1. Turns Ratio: 1CT:1CT ±5%
2. OCL: 350uH min @100KHz, 100mV, 8mADC Bias
3. Insertion Loss:
1-100MHz: -1.0dB MAX
4. Return Loss(dB MIN @100Ω):
1-30MHz: -18
40MHz: -14.4
50MHz: -13.1
60-80MHz: -12
100MHz: -10
5. Crosstalk (dB MIN):
30MHz: -45
60MHz: -40
100MHz: -35
6. DCMR: (dB MIN):
30MHz: -43
60MHz: -35
100MHz: -30
7. Hipot: 1500Vrms MIN
A. When will my order ship after payment?
We typically ship within 5-7 days after payment. Larger orders may require more time to produce.
B. Are the products tested before shipping?
Yes, each item is tested at least three times before shipping to ensure quality. You can purchase with confidence.
C. I’m a new buyer. How do I place an order?
Let us know your requirements, and we’ll provide an offer. Once agreed, we’ll send an invoice with payment details, then ship your order.
