HN4821CG Gigabit Lan Isolation Transformer Filter Magnetic LP5014NL

China HN4821CG Gigabit Lan Isolation Transformer Filter Magnetic LP5014NL supplier
HN4821CG Gigabit Lan Isolation Transformer Filter Magnetic LP5014NL supplier HN4821CG Gigabit Lan Isolation Transformer Filter Magnetic LP5014NL supplier

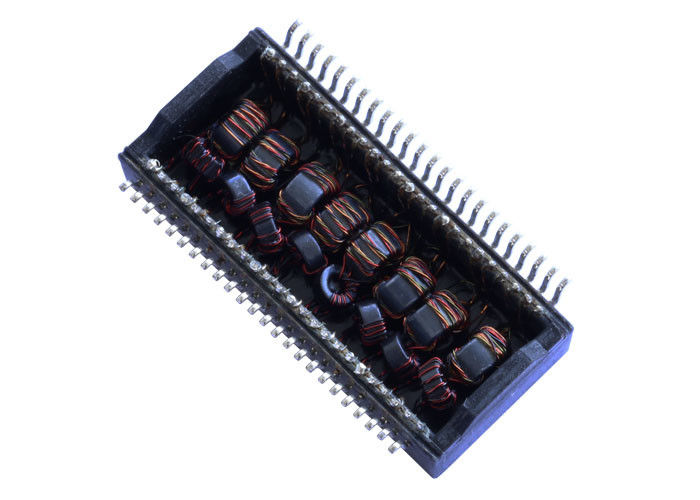

Large Image :  HN4821CG Gigabit Lan Isolation Transformer Filter Magnetic LP5014NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H5014NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: H5014NL Speed: Gigabit
Number Of Ports: Dual Application: Lan Ethernet
Package: SMD Temperature: -40 TO +85℃
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H5014NL Gigabit Isolated Lan Transformer / Filter Magnetic Module LP5014NL

Quick Details

1.Single Port Lan Transformer

2.ColiStructure: Toroidal

3.100base-t transformer

4.SMD, 24 pins
10 / 100 / 1000BASE-TX Dual Port Lan Transformer With 48 Pins



Description:

Dual Port Gigabit Ethernet Magnetics Transformers

Dual Port, 1000 BASE-T LAN Magnetic Transformer, SMD,Rohs
LINK-PP Part Number LP5014NL
Speed 1000BASE-T
Number of Ports DUAL
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0℃ TO + 70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.276
Package Height (mm) 7.00
Package Length (Inches) 1.102
Package Length (mm) 28.00
Package Width (Inches) 0.638
Package Width (mm) 16.20
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min



Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Professional Certification:
● ISO 9001:2008
● UL Certification
● Reach Cetitifaction
● RoHS Compliance
● Active Environmental Policy



Lan Product Guide Servers:

● Layering ground planes is advisable. Route connector/discrete module ground pins to chassis/analog ground if possible.

● Keep signal traces from PHY to connector/discrete module as short as possible. If traces exceed 3-4 inches, pay close attention to line impedance imbalance.

● Using BST (75Ω resistors and high voltage cap to chassis ground) to terminate Cable side CTs is advisable for best EMI performance(included in most connector solutions).

● Follow PHY manufacturer’s application notes for further layout.



H5014NL Gigabit Isolated Lan Transformer / Filter Magnetic Module LP5014NL
