PM6C-1001 Single Gigabit Ethernet Transformer 24 Pins LP5007NL

China PM6C-1001 Single Gigabit Ethernet Transformer 24 Pins LP5007NL supplier
PM6C-1001 Single Gigabit Ethernet Transformer 24 Pins LP5007NL supplier PM6C-1001 Single Gigabit Ethernet Transformer 24 Pins LP5007NL supplier

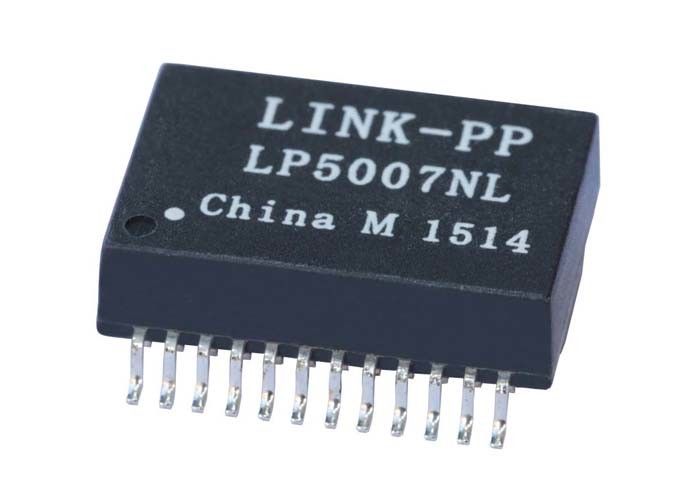

Large Image :  PM6C-1001 Single Gigabit Ethernet Transformer 24 Pins LP5007NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: PM6C-1001

Payment & Shipping Terms:

Minimum Order Quantity: 350pcs or 1400pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: PM6C-1001 Ethernet: Gig_E
Package: SMD Hipot: 1500V
Turn Radio: 1:1 New PN: LP5007NL
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

PM6C-1001 Single Gigabit Ethernet Transformer 24 Pins LP5007NL

Single Port, 1000 BASE-T Ethernet Lan Transformer Modules, SMD,Rohs
LIN-PP Part Number LP5007NL
Other Part Number PM6C-1001
Transformer Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 12
Number of Ports SINGLE
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.70
Package Width (Inches) 0.622
Package Width (mm) 15.8
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


1.Designed to support application,
such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias current.
4.RoHS"NLE" peak solder rating 245℃.



Shipping Terms DHL, UPS, FEDEX, TNT, EMS, or Collected by customer
Freight Cost Prepaid or Collected by Customers
Delivery to Customer 4-5days after shipment
Package Tray in carton or as customer's requests
Packing 10 pcs in 1 tray,22 tray in 1 carton,which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Place of Origin Guangdong, China
Payment Terms TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Delivery Time Usually 10-25 days, On-time delivery
Sample Time With in 7 days.
Sample Usually free of charge, charge cost as raw material complexity and samples quantity



Our successful customer:

Texas Instruments: LINK-PP is the preferred supplier of TI. Welcome to visit the TI website, you will look at our logo "LINK-PP" on BeagleBone Board.
