Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 20FB-22DNL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
20FB-22DNL |
P/N: |
LP5007NL |
Apllication: |
10/100/1000base-T |
Measure: |
17.70x15.80x6.60mm |
Samples: |
Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
20FB-22DNL |
P/N: |
LP5007NL |
Apllication: |
10/100/1000base-T |
Measure: |
17.70x15.80x6.60mm |
Samples: |
Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

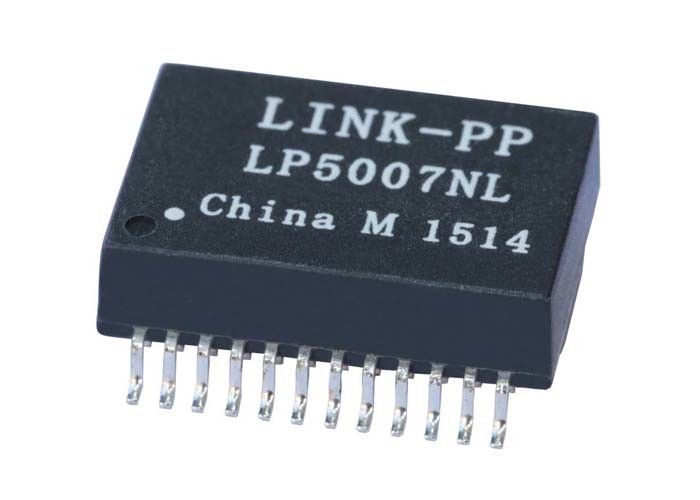

| Single Port, 1000 BASE-T Ethernet Lan Transformer Modules, SMD,Rohs | |
| LIN-PP Part Number | LP5007NL |
| Other Part Number | 20FB-22DNL |
| Transformer Speed | 1000BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Number of Ports | SINGLE |
| Package Height (Inches) | 0.260 |
| Package Height (mm) | 6.60 |
| Package Length (Inches) | 0.697 |
| Package Length (mm) | 17.70 |
| Package Width (Inches) | 0.622 |
| Package Width (mm) | 15.8 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
