Home > products > Vertical RJ45 Jack > CJ076621100 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE616NNL

CJ076621100 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE616NNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: CJ076621100

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

modular jacks rj45

,

multi port connector

Spec:
LPJE616NNL
Item:
CJ076621100
Termination:
Solder Wave
LEDs:
Optional
Type:
DIP / Top Entry
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec:
LPJE616NNL
Item:
CJ076621100
Termination:
Solder Wave
LEDs:
Optional
Type:
DIP / Top Entry
File:
PDF/3D/ISG/Stp/Step/Datasheet

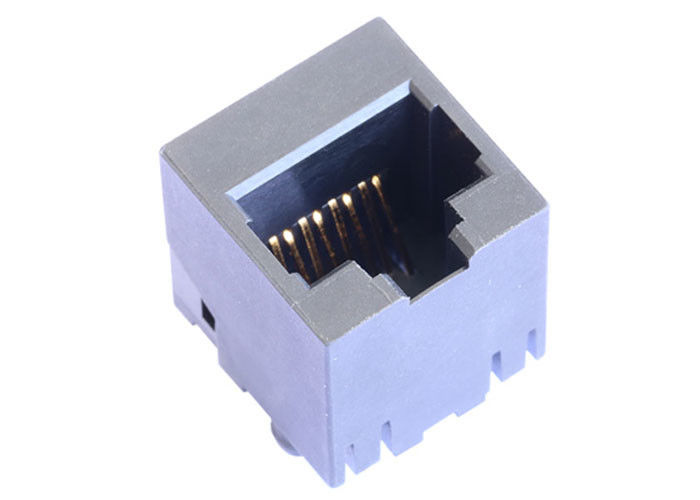

CJ076621100 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE616NNL
CJ076621100 Vertical 8P8C RJ45 Female Connector Without Magnetic LPJE616NNL



Vertical 8P8C RJ45 Female Connector without Integrated Magnetics,Without LED,RoHS
LINK-PP Part Number LPJE616NNL
WE Part Number CJ076621100
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NON
Diodes NO DIODES
LED Option without LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.645
Package Height (mm) 16.38
Package Length (Inches) 0.625
Package Length (mm) 15.88
Package Width (Inches) 0.530
Package Width (mm) 13.45
Pin Type Vertical
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed NON
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
