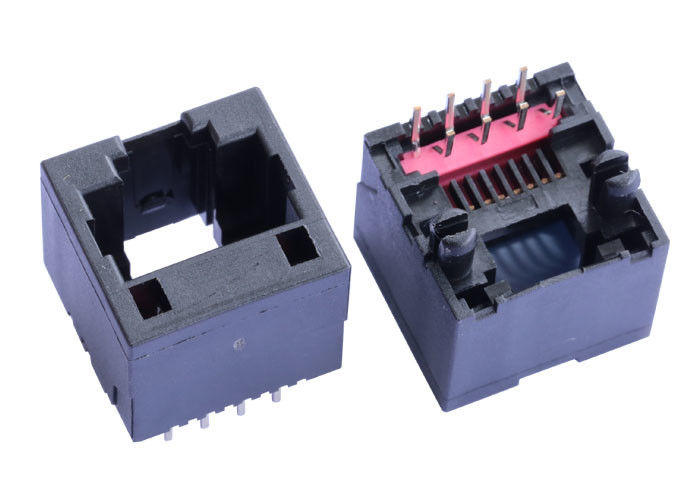

90512-001LF Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE616NNL

China 90512-001LF Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE616NNL supplier
90512-001LF Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE616NNL supplier 90512-001LF Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE616NNL supplier

Large Image :  90512-001LF Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE616NNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 90512-001LF

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $0.79↑
Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 90512-001LF Mass Production: LPJE616NNL
Termination: Solder LEDs: Optional
Type: DIP / Top Entry File: PDF/3D/ISG/Stp/Step/Datasheet

90512-001LF Vertical Entry RJ45 Jack Without Magnetic Unshielded LPJE616NNL



Vertical 8P8C RJ45 Female Connector without Integrated Magnetics,Without LED,RoHS
LINK-PP Part Number LPJE616NNL
Amphenol Part Number 90512-001LF
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NON
Diodes NO DIODES
LED Option without LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.645
Package Height (mm) 16.38
Package Length (Inches) 0.625
Package Length (mm) 15.88
Package Width (Inches) 0.530
Package Width (mm) 13.45
Pin Type Vertical
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed NON
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Product Description

SMD RJ45 single prot (1x1) Tab-UP without Leds.

designed to support applications, Such as Network Interface Cards(NIC),Lan-on Motherboard (LOM), and PC applications.



Features and Benefits :

PCB jack RJ45 connector 8P8C PCB connector

* Single port (1x1) tab-UP RJ45 with internal magnetics .

* RoHS-6 peak wave solder temperature rating 260 0C.

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

* Internal magnetics are 100% electrically tested for HI-POT and functionality.



Electrical Performance :

* 350 uH minimum OCL with 8 mA bias current.

* High performance for maximum EMI suppression.

* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.

* Operating temperature range: 0 0C to +70 0C.

* Storage temperature range: -40 0C to +85 0C.



Material Specifications :

8P8C LED light female RJ45 connector with high quality

* Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.

* Contact Area: Phosphor Bronze, Gold Plated,6U~50U Optional.

* PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel

* Housing: Reinforced FR PA66-B30 UL94V-0.

* Metal Shell: Copper Alloy, Nickel Plated

* Case: Phenolic, UL94V-0 Black.
