Home > products > Discrete Magnetic Transformers > BD12A29 1 Port 10/100 BASE-T Ethernet Lan Transformer Modules Factory LP41205PNL

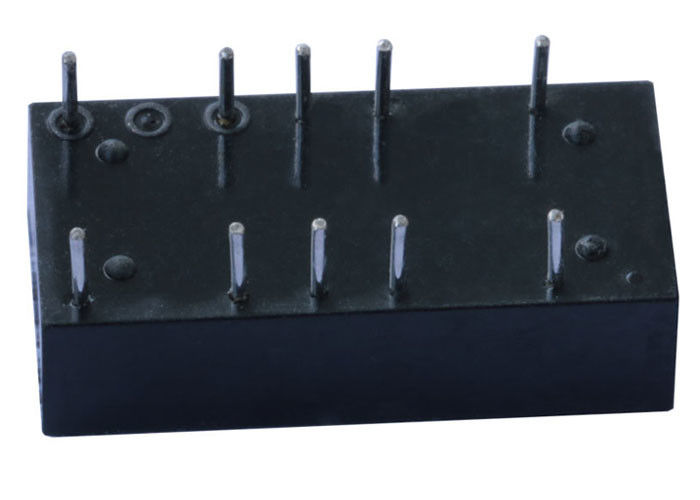

BD12A29 1 Port 10/100 BASE-T Ethernet Lan Transformer Modules Factory LP41205PNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: BD12A29

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

dual port transformer

,

quad port transformer

Specifications:
BD12A29
P/N:
LP41205PNL
Ethernet:
1x10/100Mbps
Mounting:
THT
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
BD12A29
P/N:
LP41205PNL
Ethernet:
1x10/100Mbps
Mounting:
THT
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
BD12A29 1 Port 10/100 BASE-T Ethernet Lan Transformer Modules Factory LP41205PNL
BD12A29 1 Port 10/100 BASE-T Ethernet Lan Transformer Modules Factory LP41205PNL

Single Port, 10/100 BASE-T Ethernet Lan Transformer Modules, THT,Rohs
LINK-PP Part Number LP41205PNL
Other Part Number BD12A29
Speed 10/100 BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (Non PoE)
Package THT
Temperature 0 TO + 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX C,T
Configuration TX C,T
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.283
Package Height (mm) 7.20
Package Length (Inches) 0.551
Package Length (mm) 14.00
Package Width (Inches) 0.307
Package Width (mm) 7.80
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
