Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 749050010A
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Aound 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Part Number: |
749050010A |
Data Rate: |
10G Base-T |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Ports: |
1 |
Operating Temperature: |
0 °C Up To +70 °C |
Part Number: |
749050010A |
Data Rate: |
10G Base-T |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Ports: |
1 |
Operating Temperature: |
0 °C Up To +70 °C |

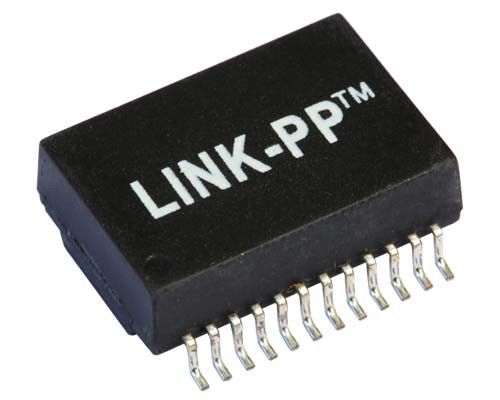

The 749050010A is a high-performance surface-mount LAN transformer, engineered for 10GBase-T Ethernet applications. This single-port LAN magnetic features a 1:1 turns ratio and is optimized for high-speed data transmission while maintaining robust signal integrity.
| Data Rate | 10G Base-T |
|
REACH Compliant |
Yes |
| Number of Ports | 1 |
| Number of channels | 4 |
|
Status |
Active |
|
Transformer Type |
SMT TRANSFORMER |
|
Inductance (OCL) |
200 µH min @ 100 kHz |
|
Insulation Test Voltage |
1500 Vrms (max), 60 seconds |
|
Turns Ratio |
1:1 (Chip: Cable) |
|
Part Number |
749050010A |
|
Operating Temperature |
0 °C to +70 °C |
|
Packing Method |
TAPE & REEL |
|
Height |
6.6 mm |
|
Length |
13.72 mm |
|
Width |
11.47 mm |
The 749050010A is compliant with IEEE 802.3 standards and is suitable for use in a wide range of high-speed network devices including:
