TG10G-S100NJRL 24 Pins 10G Bit Speed Ethernet Isolation Transformer LP7008NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: TG10G-S100NJRL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

lan isolation transformer

,

power over ethernet transformer

Specification:
TG10G-S100NJRL
Updated PN:
LP7008NL
Speed:
10G_bit
Number Of Ports:
Single
Application:
Lan Ethernet(NoN PoE)
PIN Number:
24
Temperature:
-40°C - + 85°C
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet
Specification:
TG10G-S100NJRL
Updated PN:
LP7008NL
Speed:
10G_bit
Number Of Ports:
Single
Application:
Lan Ethernet(NoN PoE)
PIN Number:
24
Temperature:
-40°C - + 85°C
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet

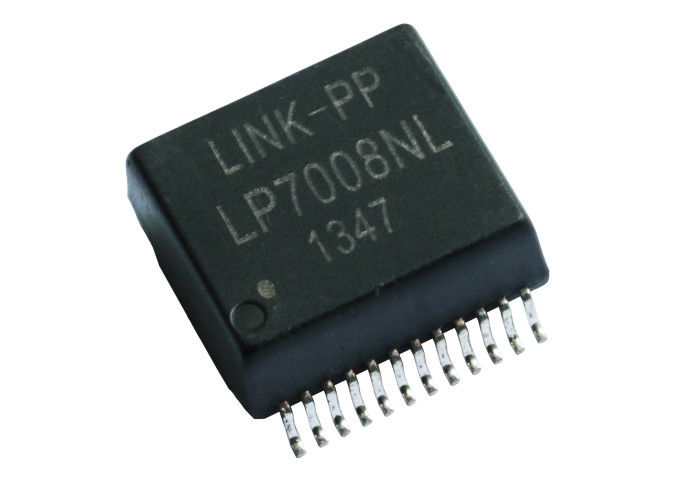

TG10G-S100NJRL 24 Pins 10G Bit Speed Ethernet Isolation Transformer LP7008NL
LP7008NL | UC-3040SG-19 10GBASE-T ETHERNET MAGNETICS 24pins Transformer



Detailed Information:

Single Port, 10G BASE-T High Frequency Transformers Modules, SMD,Rohs
LINK-PP Part Number LP7008NL
Other Part Number TG10G-S100NJRL
Speed 10G BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.225
Package Height (mm) 5.72
Package Length (Inches) 0.539
Package Length (mm) 13.7
Package Width (Inches) 0.598
Package Width (mm) 15.20
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
