Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H81630S
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H81630S |
P/N: |
LP1183NL |
Measure: |
12.7x9.30x6.20mm |
Ethernet: |
1x 10/100 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H81630S |
P/N: |
LP1183NL |
Measure: |
12.7x9.30x6.20mm |
Ethernet: |
1x 10/100 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

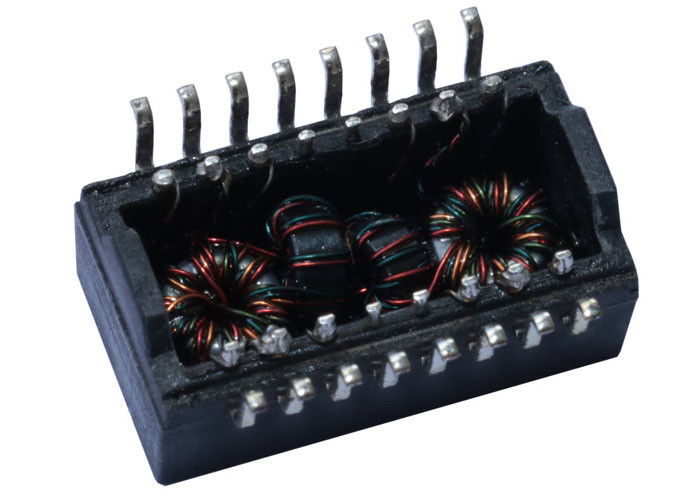

| Single Port, 10/100 BASE-T Ethernet Networking Transformers Modules, SMT,Rohs | |
| LINK-PP Part Number | LP1183NL |
| Other Part Number | H81630S |
| Speed | 10/100 BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (Non PoE) |
| Package | SMD |
| Temperature | 0 TO + 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | C,T |
| Configuration TX | C,T |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |
| Number of Ports | SINGLE |
| Package Height (Inches) | 0.244 |
| Package Height (mm) | 6.20 |
| Package Length (Inches) | 0.366 |
| Package Length (mm) | 9.30 |
| Package Width (Inches) | 0.500 |
| Package Width (mm) | 12.70 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
•Delivery Time:2-3 Weeks After Orders
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
