PT61018AAPEL-S Single Port 10/100 BASE-T Ethernet Transformer Modules LP1198NL

China PT61018AAPEL-S Single Port 10/100 BASE-T Ethernet Transformer Modules LP1198NL supplier
PT61018AAPEL-S Single Port 10/100 BASE-T Ethernet Transformer Modules LP1198NL supplier PT61018AAPEL-S Single Port 10/100 BASE-T Ethernet Transformer Modules LP1198NL supplier

Large Image :  PT61018AAPEL-S Single Port 10/100 BASE-T Ethernet Transformer Modules LP1198NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: PT61018AAPEL-S

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: PT61018AAPEL-S Rating: 10/100Base-T
Port: Single POE: Without
Mounting: SMD Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

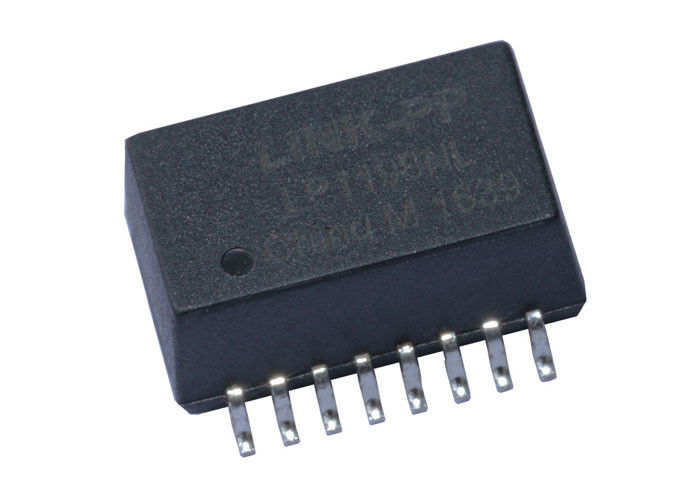

PT61018AAPEL-S Single Port 10/100 BASE-T Ethernet Transformer Modules LP1198NL



Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1198NL
Bourns Part Number PT61018AAPEL-S
Speed 10/100 BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.244
Package Height (mm) 6.20
Package Length (Inches) 0.366
Package Length (mm) 9.30
Package Width (Inches) 0.500
Package Width (mm) 12.70
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min



Application field

1) MEDICAL

Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis

2) NETWORKING

Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet

3)TELECOM/DATACOM

Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices

3) CONSUMER

Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices

4) SECURITY

Control Panels, Fire Alarm Zones, Hand Held Devices
