Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 95503-2881
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Design PN#: |
95503-2881 |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
LED: |
Flexible |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross Rf: |
LPJE682NNL |
Design PN#: |
95503-2881 |
Samples: |
Available Free |
Orientation: |
90° Angle (Right) |
LED: |
Flexible |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross Rf: |
LPJE682NNL |
95503-2881 Modular Jack Materials:
95503-2881 RJ45 Without Magnetics Specifications:
|

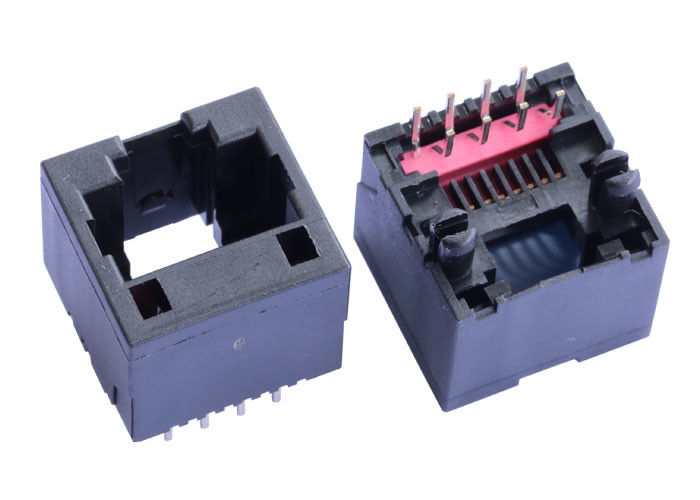

Top Entry 8P8C Vertical RJ45 Jack |
|
|
LINK-PP Part Number |
LPJE682NNL |
|
Molex Part Number |
95503-2881 |
|
Status |
Active |
|
Category |
Modular Jacks and Plugs |
| Port Configuration | 1x1 |
| Positions / Loaded Contacts | 8/8 |
|
Magnetic |
No |
| Orientation | Vertical (Top Entry) |
| Termination Interface Style | Through Hole |
|
Performance Category |
3 |
|
Power over Ethernet (PoE) |
N/A |
|
Shielded |
Unshielded |
|
Maximum per Contact Current |
1.5A |
|
Maximum Voltage |
125V DC |
|
Durability |
2500 mating cycles max |
|
Flammability |
94V-0 |
|
Jack Height |
15.70mm |
| Net Weight | 2.600/g |
|
Lightpipes /LEDs |
None |
|
PCB Locator |
Yes |
|
PCB Retention |
Yes |
|
Recommended PCB Thickness |
1.57mm |
|
Mating Interface Pitch |
1.02mm |
|
Termination Interface Pitch |
1.27mm |
|
Mating Plating min |
0.051µm, 1.016µm |
|
Termination Plating min |
1.905µm |
|
Operating Temperature Range |
- -40° to +85°C |
|
Waterproof / Dustproof |
No |
|
Packaging Type |
Tray |
