FM-1178LLF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL

China FM-1178LLF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL supplier
FM-1178LLF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL supplier FM-1178LLF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL supplier

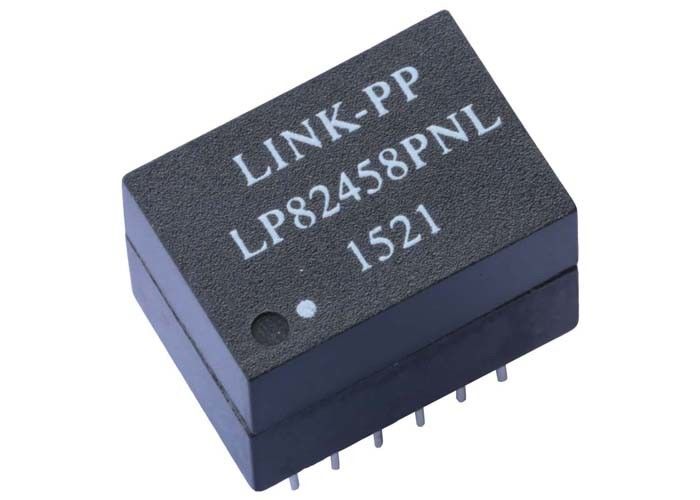

Large Image :  FM-1178LLF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: FM-1178LLF

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Tube Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: FM-1178LLF Part No: LP82458PNL
Family: 4x 100/1000Mbps Ethernet Mounting: PHT
Position: 24 Pins Samples: Available

FM-1178LLF 10/1000 BASE-T Quad Port Magnetics Transformer LP82458PNL
  • Designed for Ethernet 1000 BASE-T, full Quad port applications.
  • LINK-PP LP82458NL Magnetic Transformer
  • Cross G1PM109N LF 4x10/100/1000Base-T Ethernet
  • Compliant with IEEE 802.3ab standard for 1000 BASE-T.
  • Comply with RoHS requirements-whole part No Cd, No Hg,No Cr6+, No PBB and PBDE and No Pb on external pins.
  • Operating temperature range: 0℃ to +70℃.

Quad Port, 100/1000 BASE-T Ethernet Transformer Modules, THT,Rohs
LINK-PP Part Number LP82458PNL
Part Number FM-1178LLF
Speed 100/1000BASE-T
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package THT
Temperature 0 TO + 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 24
Package Height (Inches) 0.472
Package Height (mm) 12.00
Package Length (Inches) 0.610
Package Length (mm) 15.50
Package Width (Inches) 0.433
Package Width (mm) 11.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

FM-1178LLF Quad Port Magnetics Transformer 10 /1000 BASE - T LP82458PNL


Our Services:

20 Years Experience

Our company since 1997 RJ45 network connector production in th past 20 years,only focus on RJ45 network connector design and development and production and sales.

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

What's the Price?

Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.

What's the Payment Method?

1. TT/LC/DP/DA/Paypal/Western Union/MoneyGram

2. The buyer is responsible for all the shipping cost incurred.

3. If you prefer to other payment terms, please contact us.
