ML36T02RS Dual Ports Gigabit Ethernet Transformer Module THT LP83601NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ML36T02RS

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

Specifications:
ML36T02RS
Speed:
Gigabit
Number Of Ports:
Dual
Application:
Lan Ethernet(NON PoE)
PIN Number:
36
Temperature:
0℃ TO 70℃
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Cross Rf:
LP83601NL
Specifications:
ML36T02RS
Speed:
Gigabit
Number Of Ports:
Dual
Application:
Lan Ethernet(NON PoE)
PIN Number:
36
Temperature:
0℃ TO 70℃
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Cross Rf:
LP83601NL

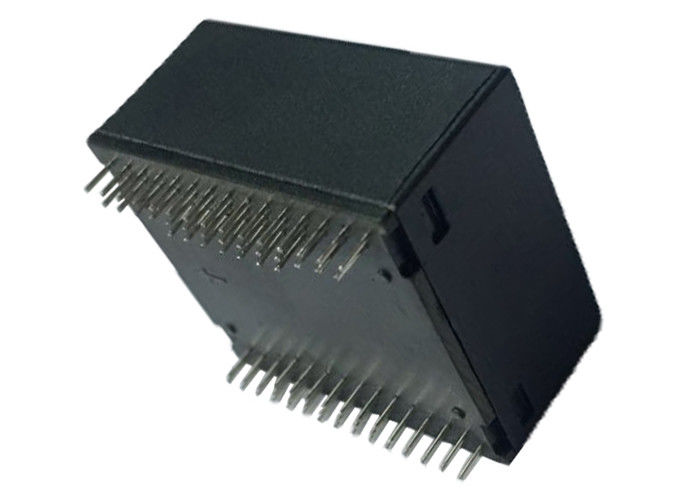

ML36T02RS Dual Ports Gigabit Ethernet Transformer Module THT LP83601NL
ML36T02RS​ Dual Ports Gigabit Ethernet Transformer Module THT LP83601NL



Description:

Dual Port, 10/100/1000 BASE-T Discrete Magnetic Transformer, THT,Rohs
LINK-PP Part Number LP83601NL
Speed 10/100/1000 BASE-T
Number of Ports DUAL
Application - LAN ETHERNET (NON PoE)
Package THT
Temperature 0 TO + 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.472
Package Height (mm) 12.00
Package Length (Inches) 0.335
Package Length (mm) 8.5
Package Width (Inches) 1.287
Package Width (mm) 32.7
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time
