HM1236NL / HM1236NLT Single Port Ethernet BMS Transformer Modules

China HM1236NL / HM1236NLT Single Port Ethernet BMS Transformer Modules supplier

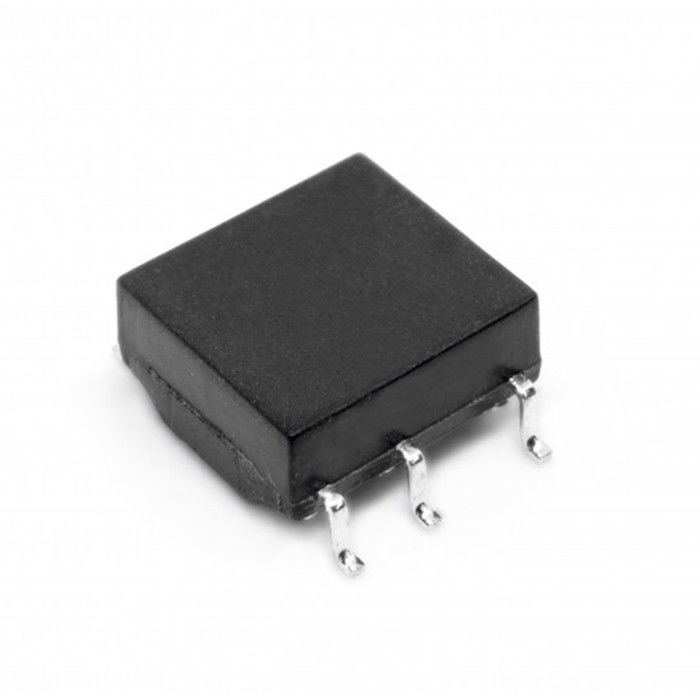

Large Image :  HM1236NL / HM1236NLT Single Port Ethernet BMS Transformer Modules

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM1236NL / HM1236NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: HM1236NL / HM1236NLT Port: Single
POE: Without Mounting: SMD
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Part Number: BMS Transformer/Choke

HM1236NL / HM1236NLT Single Port Ethernet Transformer Modules


BMS Transformer, 1-Ch, 600 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HM1236NL / HM1236NLT
Part Status Active
AEC-Q200 Yes
Application-Lan BMS Transformer/Choke
Construction Open Frame
Isolation Voltage 3200 VDC
Number of channels 1
Package SMT
Rohs Compliant YES-RoHS-6
Temperature - 40℃ TO +125℃
Working Voltage 600
Construction OPEN FRAME
Package Height (Inches) 0.160
Package Height (mm) 4.06
Package Length (Inches) 0.340
Package Length (mm) 8.64
Package Width (Inches) 0.430
Package Width (mm) 10.92
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
