HM2100NL / HM2100NLT Dual Port BMS Transformer Modules 1CT:1CT Surface Mount

China HM2100NL / HM2100NLT Dual Port BMS Transformer Modules 1CT:1CT Surface Mount supplier

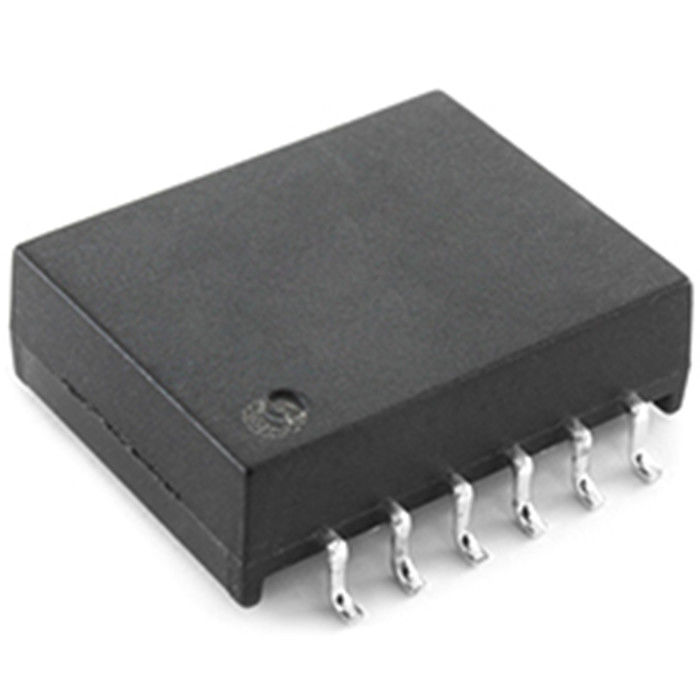

Large Image :  HM2100NL / HM2100NLT Dual Port BMS Transformer Modules 1CT:1CT Surface Mount

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM2100NL / HM2100NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: HM2100NL / HM2100NLT Port: DUAL
POE: Without Mounting: SMD
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Part Number: BMS Transformer/Choke

HM2100NL / HM2100NLT Dual Port BMS Transformer Modules 1CT:1CT Surface Mount



BMS Transformer,2-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HM2100NL / HM2100NLT
Part Status Active
AEC-Q200 Yes
Application-Lan BMS Transformer / Choke
Construction Open Frame
Isolation Voltage 4300 VDC For 60 Seconds
Number of channels 2
Package SMT
Working Voltage 1000 VDC For 15 Years
Inductance 150µH Min , 450µH Max
Rohs Compliant YES-RoHS-6
Temperature - 40℃ TO +125℃
Package Height (Inches) 0.136
Package Height (mm) 3.45
Package Length (Inches) 0.579
Package Length (mm) 14.7
Package Width (Inches) 0.459
Package Width (mm) 11.65
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
