HM2101NL / HM2101NLT Single Port Ethernet BMS Transformer Modules

China HM2101NL / HM2101NLT Single Port Ethernet BMS Transformer Modules supplier

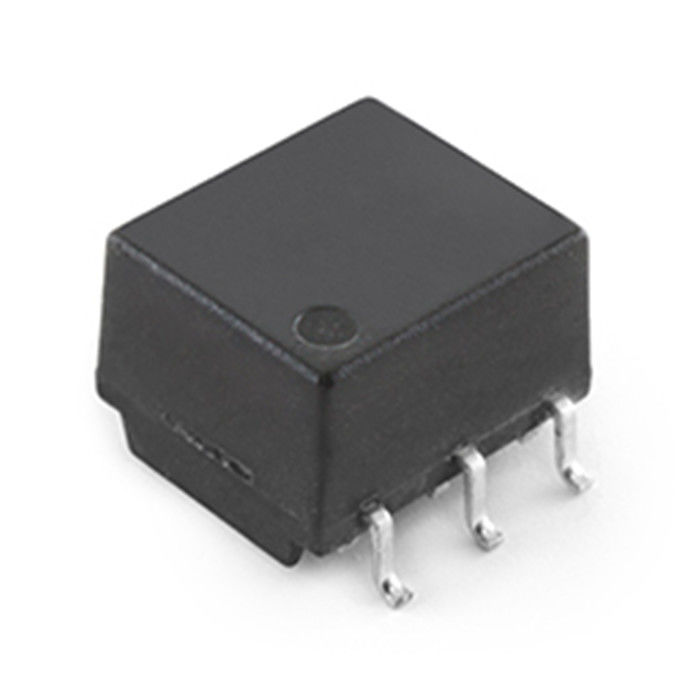

Large Image :  HM2101NL / HM2101NLT Single Port Ethernet BMS Transformer Modules

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM2101NL / HM2101NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: HM2101NL / HM2101NLT Port: Single
POE: Without Mounting: SMD
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Part Number: BMS Transformer/Choke

HM2101NL / HM2101NLT Single Port Ethernet BMS Transformer Modules



BMS Transformer,1-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HM2101NL / HM2101NLT
Part Status Active
AEC-Q200 Yes
Application-Lan BMS Transformer / Choke
Construction Open Frame
Isolation Voltage 4300 VDC For 60 Seconds
Number of channels 1
Package SMT
Working Voltage 1000 VDC For 15 Years
Inductance 150µH Min , 450µH Max
Rohs Compliant YES-RoHS-6
Creepage Distance >5mm
Operating Temperature - 40℃ TO +125℃
Storage Temperature - 50℃ TO +125℃
Package Height (Inches) 0.225
Package Height (mm) 5.72
Package Length (Inches) 0.300
Package Length (mm) 7.62
Package Width (Inches) 0.370
Package Width (mm) 9.40
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
