|Specification:||HM2106NL / HM2106NLT||Mounting:||SMT|
|Working Voltage:||1000||Isolation Voltage:||4300 VDC|

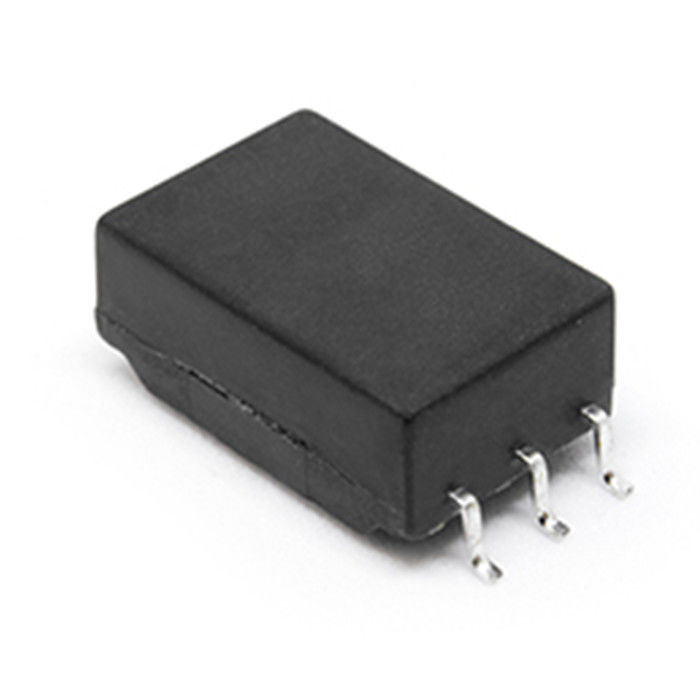

|BMS Transformer,1-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs|
|Pulse Part Number||HM2106NL / HM2106NLT|
|Isolation Voltage||4300 VDC For 30 Seconds|
|Number of channels||1|
|Insulation Resistance||400 Megaohms Minimum|
|Working Voltage||1000 VDC For 15 Years|
|Inductance||150µH Min , 370µH Max|
|Operating Temperature||- 40℃ TO +125℃|
|Storage Temperature||- 50℃ TO +125℃|
|Package Height (Inches)||0.226|
|Package Height (mm)||5.75|
|Package Length (Inches)||0.335|
|Package Length (mm)||8.5|
|Package Width (Inches)||0.663|
|Package Width (mm)||16.84|
|Turns Ratio||1.00 + 2%|
