Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HM2108NL / HM2108NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
HM2108NL / HM2108NLT |
Mounting: |
SMT |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Working Voltage: |
1000 |
Isolation Voltage: |
4300 VDC |
Specification: |
HM2108NL / HM2108NLT |
Mounting: |
SMT |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Working Voltage: |
1000 |
Isolation Voltage: |
4300 VDC |

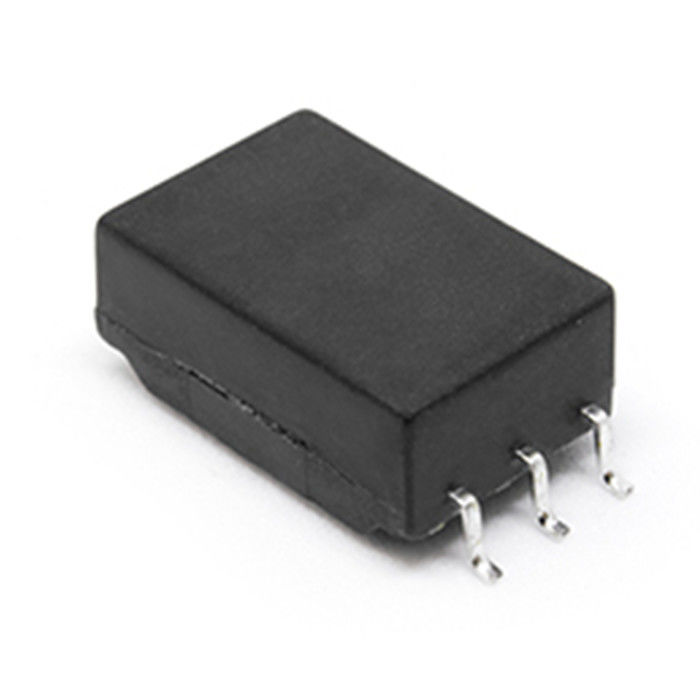

| BMS Transformer,1-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs | |
| Pulse Part Number | HM2108NL / HM2108NLT |
| Part Status | Active |
| Qualitication | Per AEC-Q200 |
| Application-Lan | BMS Transformer/Choke |
| Construction | Open Frame |
| Isolation Voltage | 4300 VDC For 30 Seconds |
| Number of channels | 1 |
| Package | SMT |
| Insulation Resistance | 400 Megaohms Minimum |
| Working Voltage | 1000 VDC For 15 Years |
| Inductance | 150µH Min , 370µH Max |
| Rohs Compliant | YES-RoHS-6 |
| Creepage Distance | >11mm |
| Operating Temperature | - 40℃ TO +125℃ |
| Storage Temperature | - 50℃ TO +125℃ |
| Package Height (Inches) | 0.226 |
| Package Height (mm) | 5.75 |
| Package Length (Inches) | 0.335 |
| Package Length (mm) | 8.5 |
| Package Width (Inches) | 0.663 |
| Package Width (mm) | 16.84 |
| Turns Ratio | 1.00 + 2% |
| Polarity | Per Schematic |
