HM2102NL / HM2102NLT Dual Port, BMS Transformer/Choke

China HM2102NL / HM2102NLT Dual Port, BMS Transformer/Choke supplier
HM2102NL / HM2102NLT Dual Port, BMS Transformer/Choke supplier

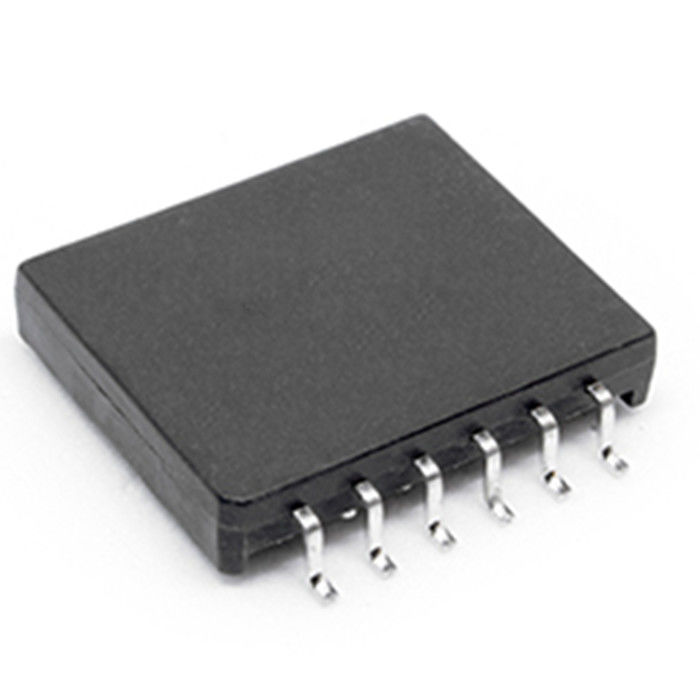

Large Image :  HM2102NL / HM2102NLT Dual Port, BMS Transformer/Choke

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM2102NL / HM2102NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Tube Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: HM2102NL / HM2102NLT Mounting: SMT
Samples: Available File: PDF/3D/ISG/Stp/Step/Datasheet
Working Voltage: 1000 Isolation Voltage: 4300 VDC
High Light:

smd transformer


surface mounting transformer

HM2102NL / HM2102NLT Dual Port, BMS Transformer/Choke


BMS Transformer,2-Ch, 1600 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HM2102NL / HM2102NLT
Part Status Active
AEC-Q200 Yes
Application-Lan BMS Transformer / Choke
Construction Open Frame
Isolation Voltage 4300 VDC
Number of channels 2
Package SMT
Working Voltage 1600 VDC For 15 Years
Inductance 150µH Min , 450µH Max
Rohs Compliant YES-RoHS-6
Creepage Distance >10mm
Operating Temperature - 40℃ TO +125℃
Storage Temperature - 50℃ TO +125℃
Package Height (Inches) 0.197
Package Height (mm) 5.00
Package Length (Inches) 0.583
Package Length (mm) 14.81
Package Width (Inches) 0.580
Package Width (mm) 14.73
Turns Ratio 1.00 + 2%
Polarity Per Schematic


HM2102NL / HM2102NLT Dual Port, BMS Transformer/Choke 0
