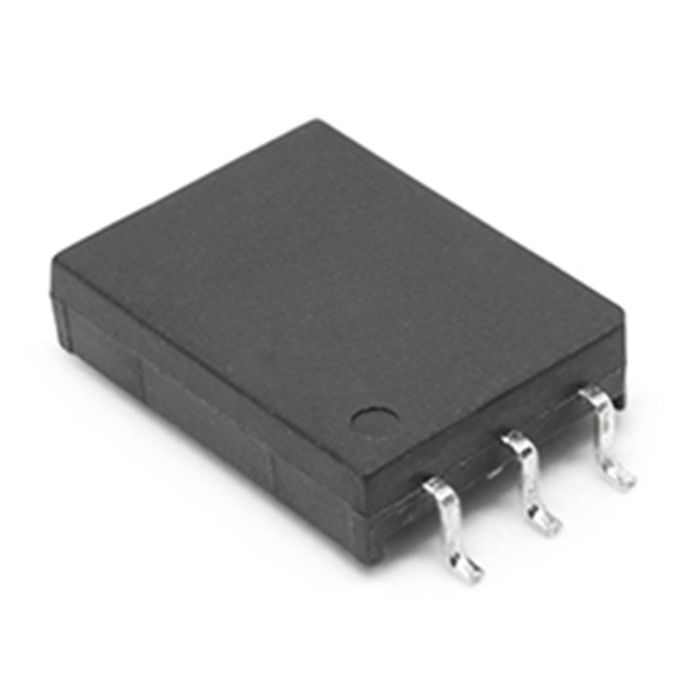

HM2113ZNL / HM2113ZNLT Single Port Pulse Transformer 1CT:1CT Surface Mount

China HM2113ZNL / HM2113ZNLT Single Port Pulse Transformer 1CT:1CT Surface Mount supplier

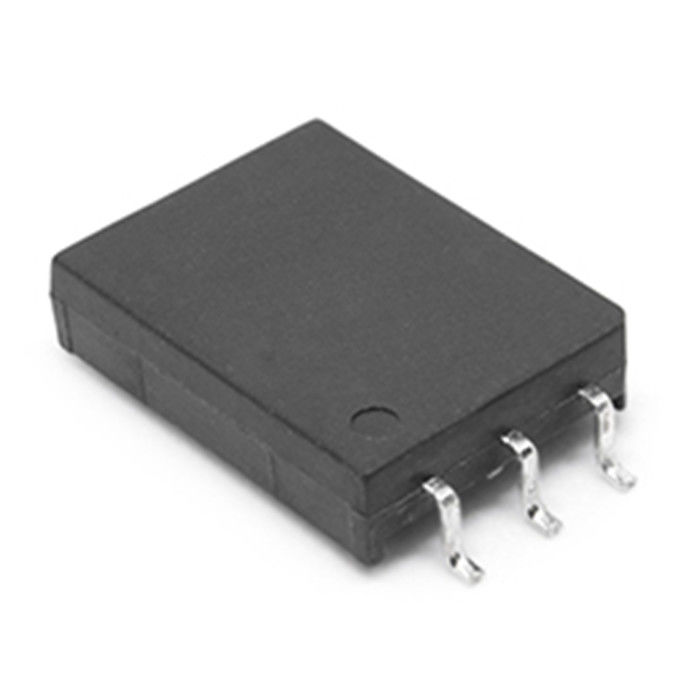

Large Image :  HM2113ZNL / HM2113ZNLT Single Port Pulse Transformer 1CT:1CT Surface Mount

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HM2113ZNL / HM2113ZNLT

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Tube Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: HM2113ZNL / HM2113ZNLT Mounting: SMT
Samples: Available File: PDF/3D/ISG/Stp/Step/Datasheet
Working Voltage: 1000 Isolation Voltage: 4300 VDC

HM2113ZNL / HM2113ZNLT Single Port Pulse Transformer 1CT:1CT Surface Mount



BMS Transformer,1-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HM2113ZNL / HM2113ZNLT
Part Status Active
Qualitication Per AEC-Q200
Application-Lan BMS Transformer/Choke
Construction Open Frame
Isolation Voltage 4300 VDC For 30 Seconds
Number of channels 1
Package SMT
Insulation Resistance 400 Megaohms Minimum
Working Voltage 1000 VDC For 15 Years
Inductance 150µH Min , 450µH Max
Rohs Compliant YES-RoHS-6
Creepage Distance >10mm
Operating Temperature - 40℃ TO +125℃
Storage Temperature - 50℃ TO +125℃
Package Height (Inches) 0.136
Package Height (mm) 3.45
Package Length (Inches) 0.354
Package Length (mm) 9
Package Width (Inches) 0.572
Package Width (mm) 14.53
Turns Ratio 1.00 + 2%
Polarity Per Schematic



HM2113ZNL / HM2113ZNLT Single Port Pulse Transformer 1CT:1CT Surface Mount

● LINK-PP Is The Preferred Supplier OfTI Samsung Siemens…

Welcome To Visit The TI Website:www.ti.com,You Will Look At Our Logo “LINK-PP” On

BeagleBone Board



Payment Terms : TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Packing : 10 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

Lead Time : About 3~5 Days After Received Payment

SKU : 200

Standards Certificate : ISO 9001,ISO 14001,UL,SGS,REACH168
