HMU2102NL / HMU2102NLT Dual Port BMS Transformer Modules SMT

China HMU2102NL / HMU2102NLT Dual Port BMS Transformer Modules SMT supplier

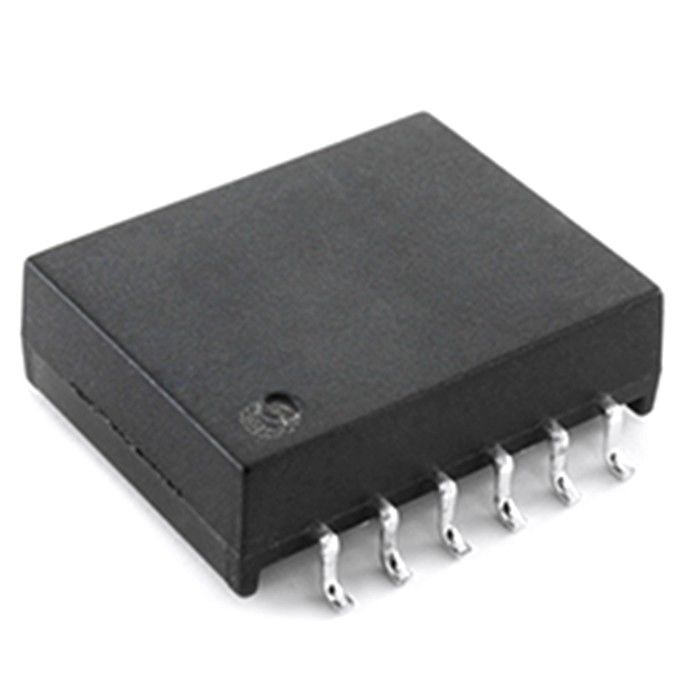

Large Image :  HMU2102NL / HMU2102NLT Dual Port BMS Transformer Modules SMT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HMU2102NL / HMU2102NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: HMU2102NL / HMU2102NLT Port: DUAL
POE: Without Mounting: SMD
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Part Number: BMS Transformer/Choke

HMU2102NL / HMU2102NLT Dual Port BMS Transformer Modules SMT


BMS Transformer,2-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs
Pulse Part Number HMU2102NL / HMU2102NLT
Part Status Active
Qualitication Per AEC-Q200
Application-Lan BMS Transformer/Choke
Construction Open Frame
Isolation Voltage 4300 VDC For 30 Seconds
Number of channels 2
Package SMT
Insulation Resistance 400 Megaohms Minimum
Working Voltage 1000 VDC For 15 Years
Inductance 150µH Min , 370µH Max
Rohs Compliant YES-RoHS-6
Operating Temperature - 40℃ TO +125℃
Storage Temperature - 50℃ TO +125℃
Package Height (Inches) 0.192
Package Height (mm) 4.88
Package Length (Inches) 0.583
Package Length (mm) 14.81
Package Width (Inches) 0.579
Package Width (mm) 14.7
Turns Ratio 1.00 + 2%
Polarity Per Schematic
