Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HM2112ZNL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
HM2112ZNL |
Mounting: |
PHT |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Working Voltage: |
1600 |
Isolation Voltage: |
4300 VDC |
Specification: |
HM2112ZNL |
Mounting: |
PHT |
Samples: |
Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Working Voltage: |
1600 |
Isolation Voltage: |
4300 VDC |

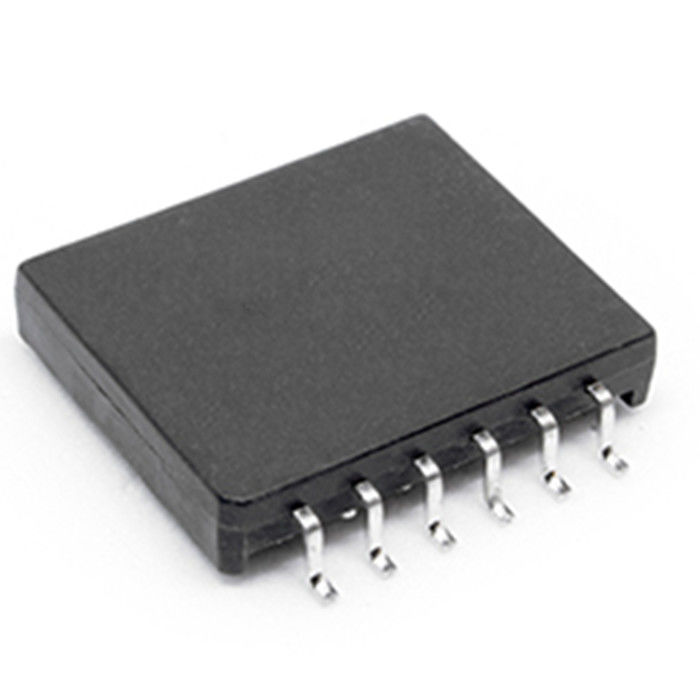

| BMS Transformer,2-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs | |
| Pulse Part Number | HM2112ZNL |
| Part Status | Active |
| Qualitication | Per AEC-Q200 |
| Application-Lan | BMS Transformer/Choke |
| Construction | Open Frame |
| Isolation Voltage | 4300 VDC For 30 Seconds |
| Number of channels | 2 |
| Package | SMT |
| Insulation Resistance | 400 Megaohms Minimum |
| Working Voltage | 1000 VDC For 15 Years |
| Inductance | 150µH Min , 450µH Max |
| Rohs Compliant | YES-RoHS-6 |
| Creepage Distance | >10mm |
| Operating Temperature | - 40℃ TO +125℃ |
| Storage Temperature | - 50℃ TO +125℃ |
| Package Height (Inches) | 0.136 |
| Package Height (mm) | 3.45 |
| Package Length (Inches) | 0.579 |
| Package Length (mm) | 14.7 |
| Package Width (Inches) | 0.607 |
| Package Width (mm) | 15.43 |
| Turns Ratio | 1.00 + 2% |
| Polarity | Per Schematic |
Our Services:
20 Years Experience
Our company since 1997 RJ45 network connector production in th past 20 years,only focus on RJ45 network connector design and development and production and sales.
OEM Services
For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.
Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.
Our Team
We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.
What's the Price?
Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/MoneyGram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.
FAQ
Q: How long Delivery time ?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days USB Series: 7~15 days
Connector: 7~15 days
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements
(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
