1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield W/LED LPJE681-0BENL

China 1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield W/LED LPJE681-0BENL supplier
1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield W/LED LPJE681-0BENL supplier 1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield W/LED LPJE681-0BENL supplier 1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield W/LED LPJE681-0BENL supplier

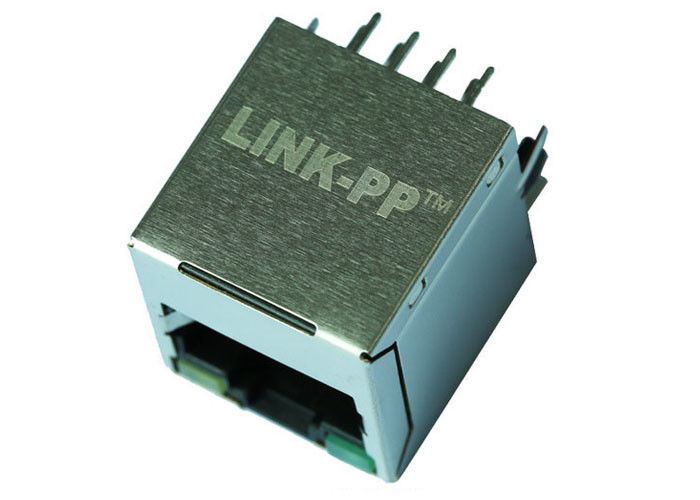

Large Image :  1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield W/LED LPJE681-0BENL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: 1734577-1
Model Number: RV1-10108K1A

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: 0.85-2.5 USD/PCS
Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton
Delivery Time: 1 week
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 1734577-1 Original Munafactuer: LINK-PP
Project Application: Networking Solutions Termination: Solder
LEDs: GREEN/YELLOW

1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield w/LED LPJE681-0BENL





Competitor Cross Reference

1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield w/LED LPJE681-0BENL
LINK-PP Part Number LPJE681-0BENL
Other Part Number 1734577-1
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Diodes NO DIODES
LED Option GREEN/YELLOW
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 16.69
Package Length (mm) 16.35
Package Width (mm) 16.01
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Specification


1734577-1 Top Entry Vertical RJ45 Jack 8P8C Shield W/LED LPJE681-0BENL 0
