LPJE681BENL Female Vertical Modular Jacks RJ45 8P8C Top Entry Socket HY-5224

China LPJE681BENL Female Vertical Modular Jacks RJ45 8P8C Top Entry Socket HY-5224 supplier
LPJE681BENL Female Vertical Modular Jacks RJ45 8P8C Top Entry Socket HY-5224 supplier LPJE681BENL Female Vertical Modular Jacks RJ45 8P8C Top Entry Socket HY-5224 supplier

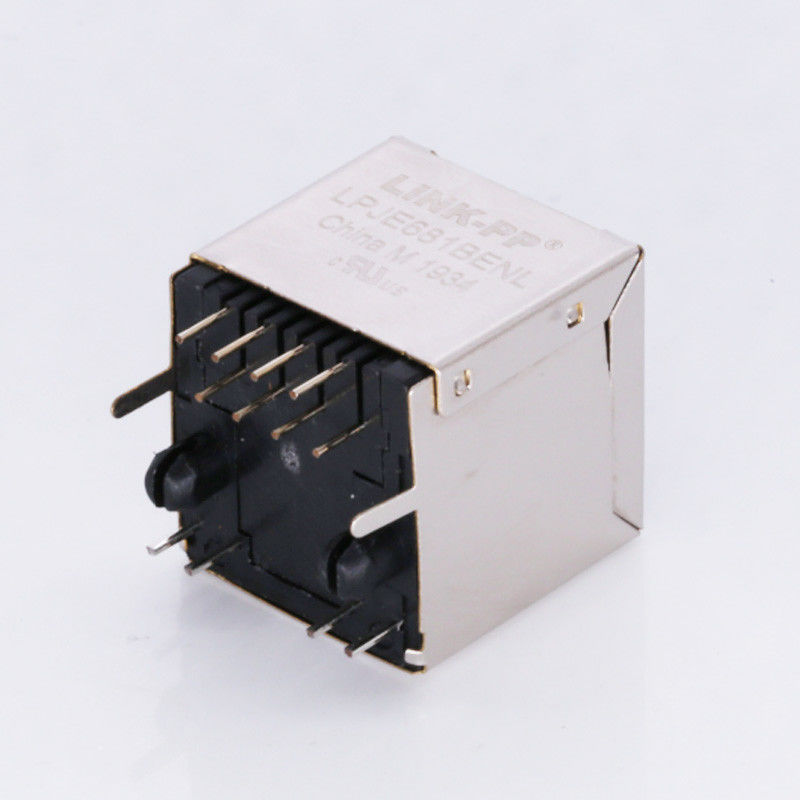

Large Image :  LPJE681BENL Female Vertical Modular Jacks RJ45 8P8C Top Entry Socket HY-5224

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008
Model Number: HY-5224+LED

Payment & Shipping Terms:

Minimum Order Quantity: 1000/5K,20K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Product Name: HY-5224 Type: RJ45 Vertical Mounting
Oriental: 180° RoHS Compliant: Yes
Indicator: Selected Samples: Free

LPJE681BENL Vertical Female RJ45 Modular Plugs 8P8C Top Entry Socket  HY-5224





  1. Top Entry
  2. Thru Hole PCB
  3. 180 degree Female Ethernet Connector

Competitive Price And Service

• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders



Packing

1. Conventional packing: braid package/blister packaging/plastic pipe packaging/tape packaging.
2. We can do the packing according to the customer's requirement, but the price is different.



Shipping:

By Sea : If you have freight forwarder , they can handle shipping for you . If you don't have it , we can provide the cheapest shipping cost to you .
By Air : You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent , you can contact with our sales to get the cheapest freight cost



LPJE681BENL Female Vertical Modular Jacks RJ45 8P8C Top Entry Socket HY-5224

LPJE681BENL Female Vertical Modular Jacks RJ45 8P8C Top Entry Socket HY-5224



Vertical RJ45 Connector without Integrated Magnetics,Green/Yellow LED,RoHS
LINK-PP Part Number LPJE681BENL
Other Part Number HY-5224
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port RJ45 Without Magnetics
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Vertical
PCB Retaining Post T POST
Package Height (Inches) 0.665
Package Height (mm) 16.90
Package Length (Inches) 0.657
Package Length (mm) 16.70
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES
Search YES
Shield EMI Tabs WITHOUT
Speed RJ45 Without Magnetics
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
