LP5014NL SMT Gigabit Ethernet Transformer PM6C-2004 48 Pins For Lan Ethernet

China LP5014NL SMT Gigabit Ethernet Transformer PM6C-2004 48 Pins For Lan Ethernet supplier
LP5014NL SMT Gigabit Ethernet Transformer PM6C-2004 48 Pins For Lan Ethernet supplier LP5014NL SMT Gigabit Ethernet Transformer PM6C-2004 48 Pins For Lan Ethernet supplier

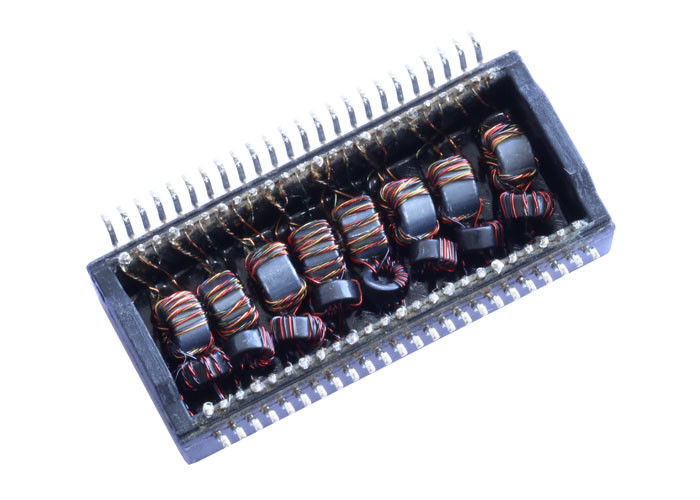

Large Image :  LP5014NL SMT Gigabit Ethernet Transformer PM6C-2004 48 Pins For Lan Ethernet

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: PM6C-2004

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Supportive
Packaging Details: 350pcs/Reel,1400pcs/Carton
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: PM6C-2004 Speed: 10/100/1000base-T
Application: Lan Ethernet Project Application: NETWORK INTERFACE CARD
PIN Number: 48 Temperature: -40 TO + 85℃
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP5014NL Dual Gigabit SMT Transformer 10/100/1000Base Magnetic PM6C-2004




Detailed Information:

Dual Port, 1000 BASE-T Ethernet Transformer Modules, SMD, Rohs
LINK-PP Part Number LP5004ANL
Speed 1000BASE-T
Number of Ports Dual
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature -40℃ TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.276
Package Height (mm) 7.00
Package Length (Inches) 1.102
Package Length (mm) 28.00
Package Width (Inches) 0.638
Package Width (mm) 16.20
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers


Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy

100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years

Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services


LP5014NL Dual Gigabit SMT Transformer 10/100/1000Base Magnetic Double PortLP5014NL Dual Gigabit SMT Transformer 10/100/1000Base Magnetic Double PortLP5014NL Dual Gigabit SMT Transformer 10/100/1000Base Magnetic Double PortLP5014NL Dual Gigabit SMT Transformer 10/100/1000Base Magnetic Double PortLP5014NL Dual Gigabit SMT Transformer 10/100/1000Base Magnetic Double Port

LP5014NL Dual Gigabit SMT Transformer 10/100/1000Base Magnetic PM6C-2004
