G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface

China G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface supplier
G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface supplier G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface supplier

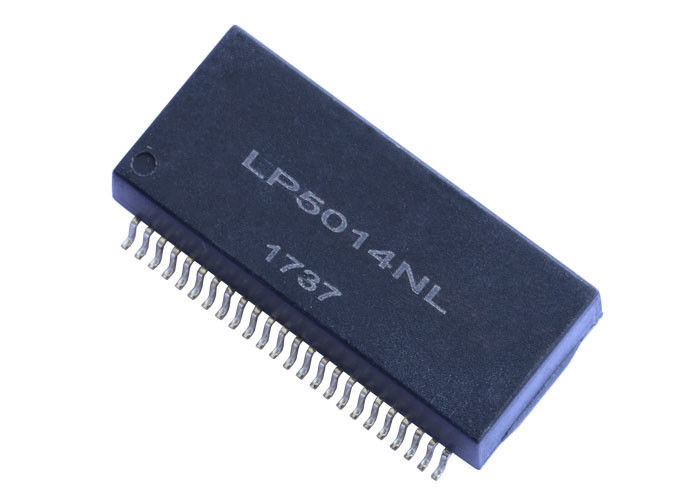

Large Image :  G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: G4802AG

Payment & Shipping Terms:

Minimum Order Quantity: 1600/Carton
Price: Supportive
Packaging Details: Tape & Teel
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item: LP5014NL Cross P.N: G4802AG
Pin No: 48 Pins Series: 2 Ports GigE Transformer
Termination Style: SMD/SMT Isolation Voltage:: 1500V
Samples: Free Offer Cross Part: XF-LCZ3Y2ZA = LP5014NL

G4802AG Dual Port Gigabit Magnetic Transformers LP5014NL 1000Base-T Interface





Features

■ Two Ports Ethernet Magnetic Transformers LP5014NL Equivalent to G4802AG
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables




G4802AG Dual Port Gigabit Ethernet Transformer LP5014NL 1000Base-T Interface 0

Dual Port,1000 BASE-T Ethernet Transformer Modules,SMD,Rohs
LINK-PP Part Number: LP5014NL
Other Part Number G4802AG
Speed: 1000BASE-T
Number of Ports: DUAL
Application - LAN: ETHERNET (NON PoE)
Package: SMD
Temperature: 0℃ TO + 70℃
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S

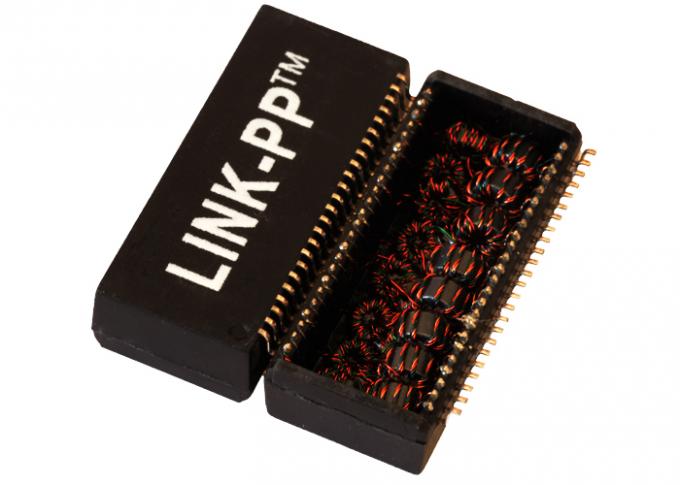

Construction: OPEN FRAME
Cores Per Port: 16
Package Height (Inches): 0.276
Package Height (mm): 7.00
Package Length (Inches): 1.102
Package Length (mm): 28.00
Package Width (Inches): 0.606
Package Width (mm): 15.40
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT
