G7201DG 72 Pins 1X4 Port Gigabit Ethernet Magnetic Transformers LP5028NL

G7201DG 72 Pins 1X4 Port Gigabit Ethernet Magnetic Transformers LP5028NL
G7201DG 72 Pins 1X4 Port Gigabit Ethernet Magnetic Transformers LP5028NL G7201DG 72 Pins 1X4 Port Gigabit Ethernet Magnetic Transformers LP5028NL

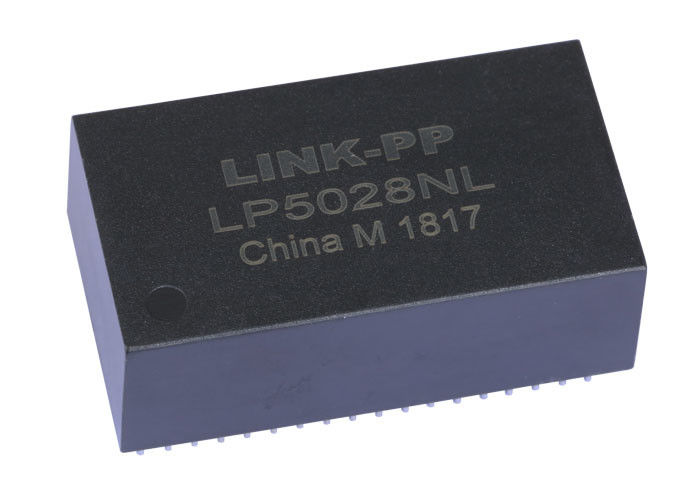

Large Image :  G7201DG 72 Pins 1X4 Port Gigabit Ethernet Magnetic Transformers LP5028NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: G7201DG

Payment & Shipping Terms:

Minimum Order Quantity: 200/500 PCS
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000000/Month
Detailed Product Description
Spc: G7201DG Specification: LP5028NL
Pins No: 72Pins Ethernet: 10/100/1000base-T
Mounting: THT PCB Samples: Available 1~3 PCS
High Light:

10/100base-t magnetics

,

gigabit magnetics transformer

G7201DG 72Pins 1X4 Port Gigabit Ethernet Isolation Transformer LP5028NL





Quad Port, 100/1000 BASE-T Ethernet Transformer Modules, THT,Rohs
LINK-PP Part Number LP5028NL
Other Part Number G7201DG
Speed 100/1000BASE-T
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package THT
Temperature 0 TO + 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 32
Package Height (Inches) 0.492
Package Height (mm) 12.50
Package Length (Inches) 1.358
Package Length (mm) 34.50
Package Width (Inches) 0.744
Package Width (mm) 18.90
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Main Customer



Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......



11A053-5722-00 POE RJ45 Connector LPJ0009GDNL Rectifier Bridge AC To DC



Other Part Number:



G4P109R-LF LP5004ANL LP5009NLE LP5020ANL
G4P109N-A LF LP5004NL LP5012NLE LP5204
LP5084NL LP5004NLE LP5014ANL LP5229
LP5084NLE LP5007NL LP5014NL LP5251UL
LP5203V7358I711A5Z LP5007NLE LP5019NL LP5267
LP5026NL LP5008 LP5020NL LP5414V7255I707A5S
LP5028NL LP5008ANLE LP5062NL LP5490
LP5020NLE LP5009ANL LP5494 LP5493



FAQ

Q1: Can provide a sample test?

A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.

Q2: How about the MOQ?

A: NO MOQ , 1pcs OK . Small order welocome.

Q3: What’s the lead time?

A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: Can make customized products ?

A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q5: What kind of payment do accept ?

A: ONLINE ( TRADE INSURANCE),,VISA,T/T,Western union,MoneyGram.
