S16A-1102 Ethernet Magnetic Transformers 10/100 Base-T Compatible LP41604ANL

S16A-1102 Ethernet Magnetic Transformers 10/100 Base-T Compatible LP41604ANL
S16A-1102 Ethernet Magnetic Transformers 10/100 Base-T Compatible LP41604ANL S16A-1102 Ethernet Magnetic Transformers 10/100 Base-T Compatible LP41604ANL

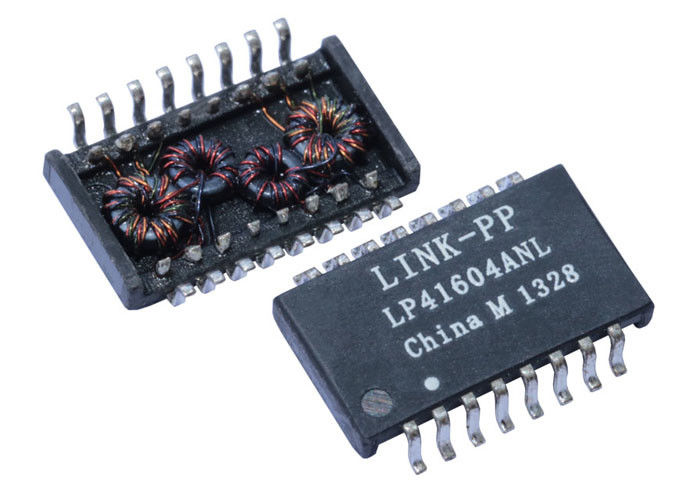

Large Image :  S16A-1102 Ethernet Magnetic Transformers 10/100 Base-T Compatible LP41604ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: S16A-1102

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Detailed Product Description
PN: S16A-1102 Transformer Type: Isolation And Data Interface
Turns Ratio: 1CT : 1CT Size / Dimension: 12.70mmX9.65mmX2.29mm
Hipot: 1500V Mass Production: LP41604ANL
High Light:

10/100base-t magnetics

,

gigabit magnetics transformer

S16A-1102 Ethernet Magnetic Transformer 10/100 Base-T Compatible LP41604ANL





Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP41604ANL
Cross Part Number S16A-1102
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature - 40 TO + 85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.090
Package Height (mm) 2.29
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.380
Package Width (mm) 9.65
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Feature

  1. S16A-1102  Magnetic designs to support every PHY. LP41604ANL
  2. Complies with IEEE 802.3 standards including 350 uH min OCL with 8mA bias.
  3. Comply with RoHS requirements-whole part No Cd, No Hg,
  4. No Cr6+, No PBB and PBDE and No Pb on external pins.



S16A-1102 Ethernet Magnetic Transformers 10/100 Base-T Compatible LP41604ANL 0



NOTES:
1. Designed to support application,such as SOHO(ADSLmodems),LAN-on-Motherboard(LOM),hub and     Switches.
2. Meets IEEE 802.3 specification.
3. Maximun reflow temperature is 260℃,10s,3 times.



FAQ

Q: How can I get a Sample?

A: Just check with our sales

Q: How to develop a new product base on an ideal

A: Tell us what you want.tell we will design it for free

Q: How about OEM,ODM?

A: 15 Years experiences in OEM,ODM

Q: How to reduce your risk?

A: Check the sample before order

Q: How about the after-sales service

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.
