Home > products > Discrete Magnetic Transformers > LPB06031ANL Ethernet Magnetic Transformers 1 Port Ethernet Card HR600791

LPB06031ANL Ethernet Magnetic Transformers 1 Port Ethernet Card HR600791

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HR600791

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

10/100base-t magnetics

,

gigabit magnetics transformer

Link-pp Number:
HR600791
Cross Rf:
LPB06031ANL
Package:
SMT
Construction:
TRANSFER MOLD
Application:
LAN ETHERNET ( NON PoE )
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Link-pp Number:
HR600791
Cross Rf:
LPB06031ANL
Package:
SMT
Construction:
TRANSFER MOLD
Application:
LAN ETHERNET ( NON PoE )
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LPB06031ANL Ethernet Magnetic Transformers 1 Port Ethernet Card HR600791
LPB06031ANL Mainboard Lan Transformer 1 Port Ethernet Card HR600791





Quick Details :

1. Single Port Lan Transformer

2. ColiStructure: Toroidal

3. SMD, 6 pins

4. HR600791 pin to pin LPB06031ANL



Description:

Single Port 100 Base-t ETHERNET MAGNETIC TRANSFORMERS



Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LPB06031ANL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 1
Number of Ports Single
PCB NO PCB
Package SMT
Package Height (mm) 6.60 or other
Package Length (mm) 10.200or other
Package Width (mm) 10.00or other
RoHS Compliant YES-RoHS-6
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

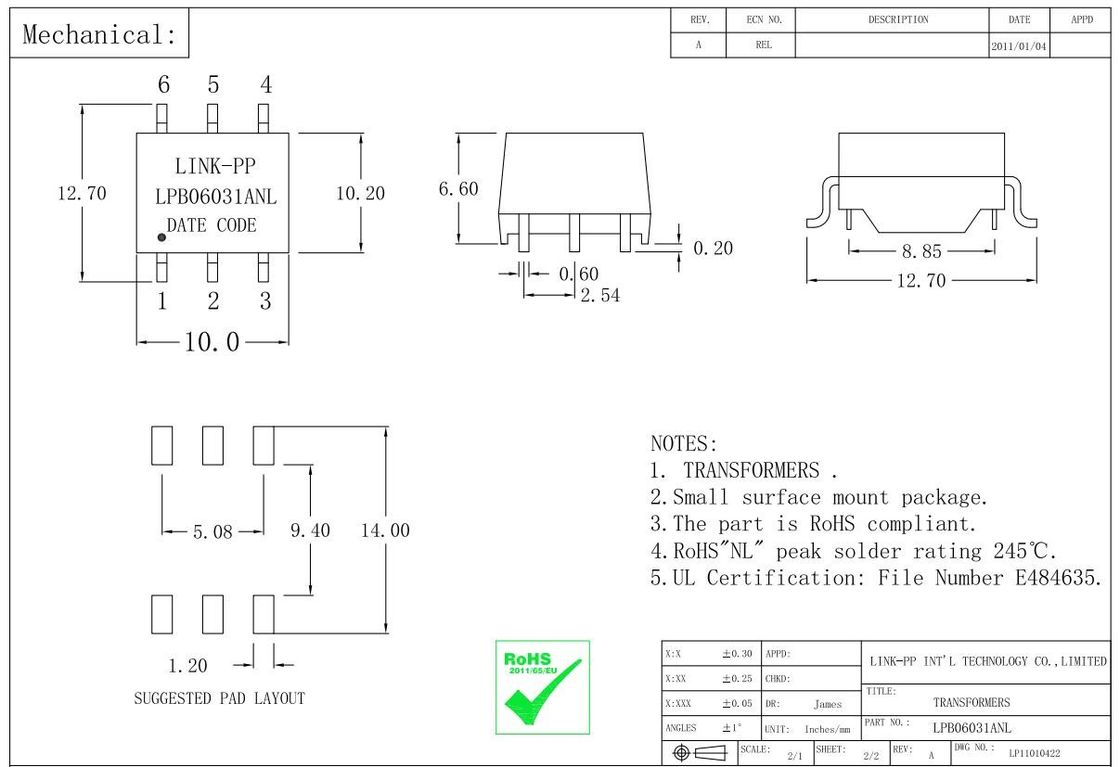

LPB06031ANL Ethernet Magnetic Transformers 1 Port Ethernet Card HR600791 0



Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Company profile :

LINK-PP Established in 1997,is worldwide leader in magnetic telecom,networking components and optical transceiver modules design and manufacturing. With an extensive line of state-of-the-art catalog products as well as custom capabilities, LINK-PP is a global supplier magnetic telecom,networking components and Optical Transceiver Modules,the OEM and ODM are welcome.



LINK-PP, there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover,we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem.

Committed to bringing the highest possible level of compliance to international standards, all sites are ROSH6, ISO9000:2008 ISO14001:2004, UL,REACH ,CE, FCC,TUV,FDA Registered.
