EPF8119S-RC 10/100Base-T 16 Pin LP1102NL Ethernet Magnetic Transformers

EPF8119S-RC 10/100Base-T 16 Pin LP1102NL Ethernet Magnetic Transformers
EPF8119S-RC 10/100Base-T 16 Pin LP1102NL Ethernet Magnetic Transformers EPF8119S-RC 10/100Base-T 16 Pin LP1102NL Ethernet Magnetic Transformers EPF8119S-RC 10/100Base-T 16 Pin LP1102NL Ethernet Magnetic Transformers

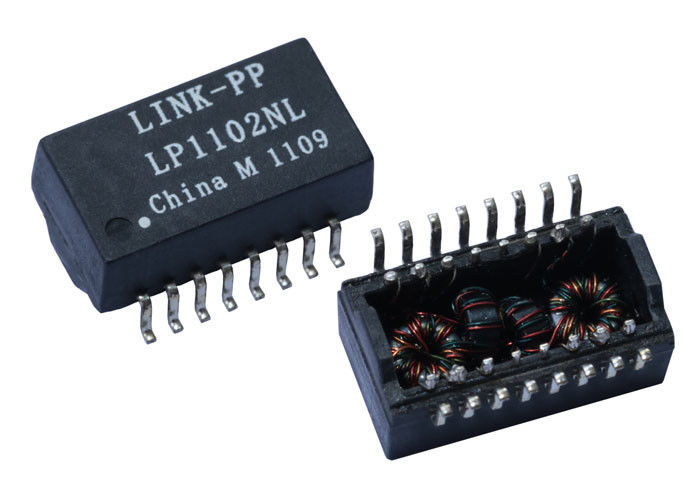

Large Image :  EPF8119S-RC 10/100Base-T 16 Pin LP1102NL Ethernet Magnetic Transformers

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: EPF8119S-RC

Payment & Shipping Terms:

Minimum Order Quantity: 350/1400
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 5000K/month
Detailed Product Description
Spec: EPF8119S-RC Cross Rf: LP1102NL => EPF8119S-RC
Pins: 16 Samples: Free 2 Pcs
Dimension: 5.10x12.80x9.30mm Operating Temperature: 0 To 70
High Light:

10/100base-t magnetics

,

gigabit magnetics transformer

EPF8119S-RC 10/100Base-T Ethernet Magnetic Transformers With 16 Pin LP1102NL

1. Single Port Lan Transformer EPF8119S-RC
2. LP1102NL 100% Cross EPF8119S-RC
3. 10 / 100 base-t transformer 16 Pins
4. Conceptual Product Development ; Mechanical Design Services ; Electrical Design Services
5. Design Flexible
6. Files : PDF / Datasheet / 3D / IGS / Step / Stp / Cross

Description:

LINK-PP Part Number: LP1102NL
Cross Part Number: EPF8119S-RC
Speed: 10/100BASE-T
Number of Ports: SINGLE
Application - LAN: ETHERNET (NON PoE)
Package: SMD
Temperature: -40~+85℃
AutomDX: YES
Comment: SAME AS NL VERSION
Configuration RX: T,C,S
Configuration TX: T,C,S
Construction: OPEN FRAME
Cores Per Port: 4
Number of Ports: SINGLE
Package Height (Inches): 0.244
Package Height (mm): 6.20
Package Length (Inches): 0.500
Package Length (mm): 12.70
Package Width (Inches): 0.281
Package Width (mm): 7.15
Turns Ratio RX: 1CT:1CT
Turns Ratio TX: 1CT:1CT



Applications:
1. Wireless Smart Camera Network
2. DTXdispatching telephone exchange
3. Vacuum Fluorescent Displays
4. GPIB Controllers and GPIB Interface Boards

Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time

NOTES:

1. Designed to support application,such as SOHO(ADSL modems),

    LAN-on-Motherboard(LOM),hub and Switches.

2. With Various Turns Ratios

3. 350mA Current Capability

4. Maximun reflow temperature is 250℃ Max, 5 Sec



EPF8119S-RC 10/100Base-T 16 Pin LP1102NL Ethernet Magnetic Transformers 0

FAQ:

Q1: Are you a factory or trading company?
A1: We have 3 factories. Welcome to visit us!
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3: What is your Warranty?
A3: All the network cabling products will have 1 years Warranty.
Q4: What payment method do you accept?
A4: T/T(Bank transfer), Western Union, Money Gram, PayPal.

Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
